Application

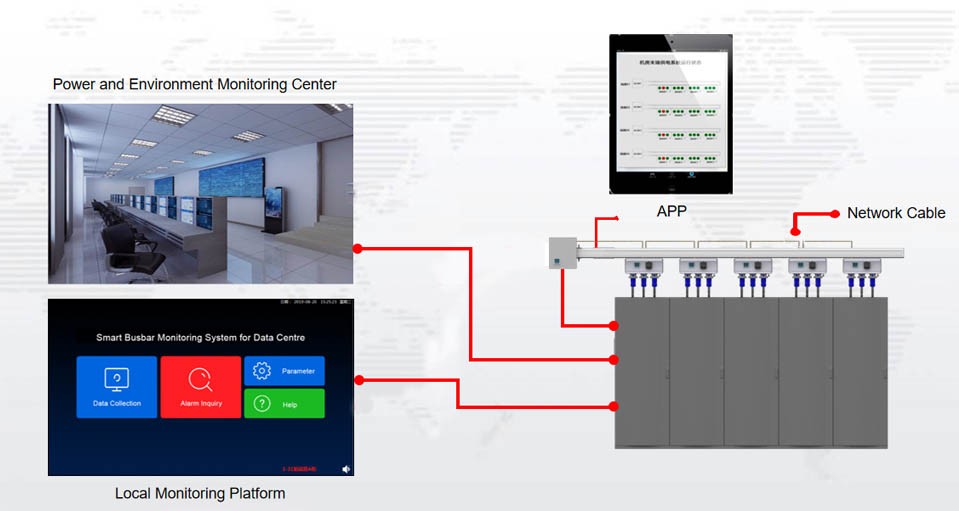

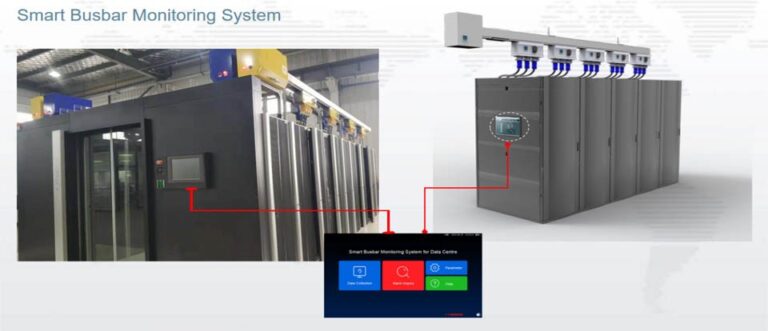

It is necessary to real-time monitor energy consumption and power quality of end load in smart track busway. Data can be uploaded to monitoring system by local touch screen through RS485 and it can realize real-time monitoring of the whole power distribution system.At the same time,it can monitor real-time temperature at the busway connector and plug-in box interface to ensure safe and reliable operation of the busway.

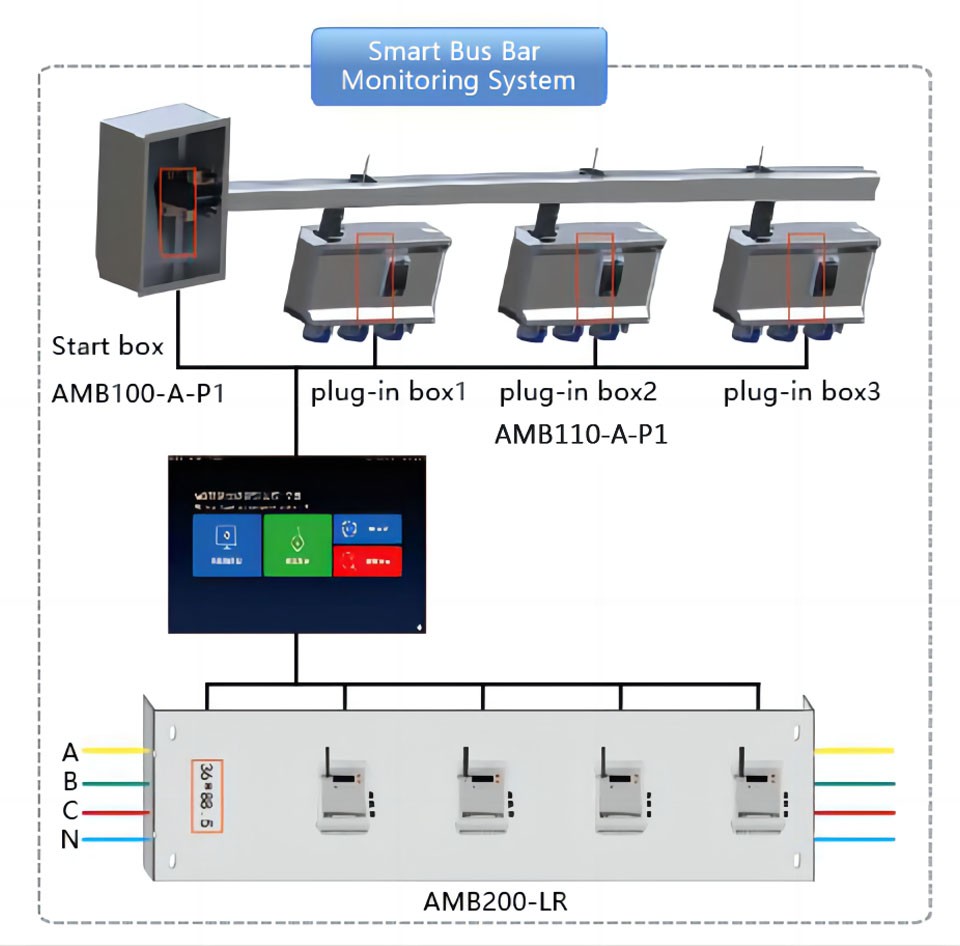

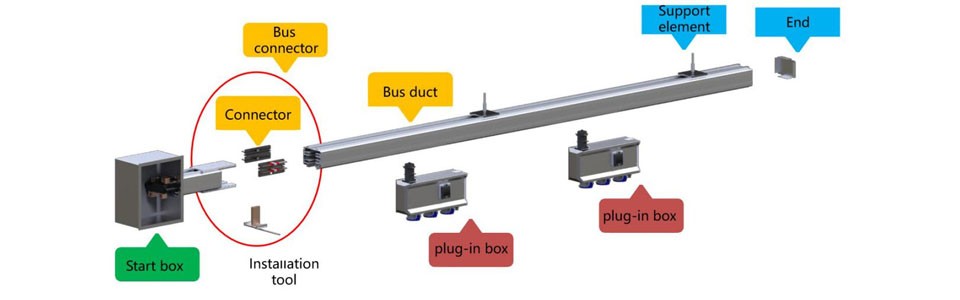

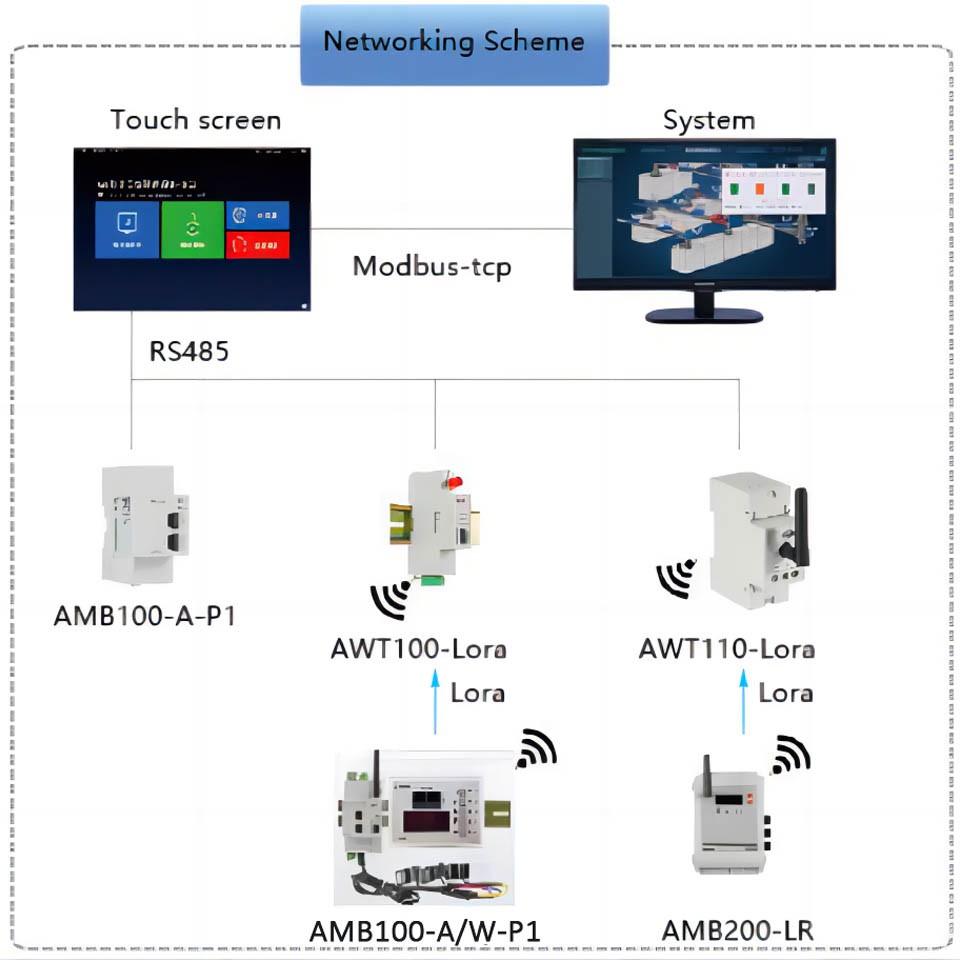

Structure

Busway temperature monitoring system(Infared)

Main Function

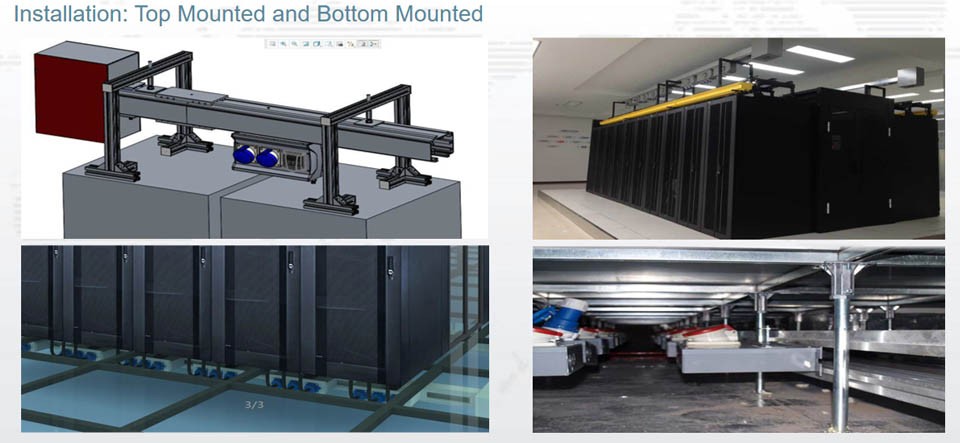

  • 1.AMB100 or AMB110 is usually installed in the busbar start box and plug-in box
  • 2.Measurement: AC or DC busbar voltage, current, harmonics and other parameters.
  • 3.Realize temperature monitoring of the busbar plug interface
  • 4.AMB300 is installed on the cover plate of dense AC bus duct, and can collect the temperature and humidity in the bus duct through infrared non-contact temperature measurement.
  • 5.Communication: RS485

Product Selection

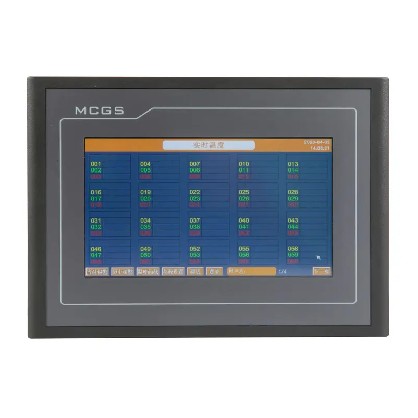

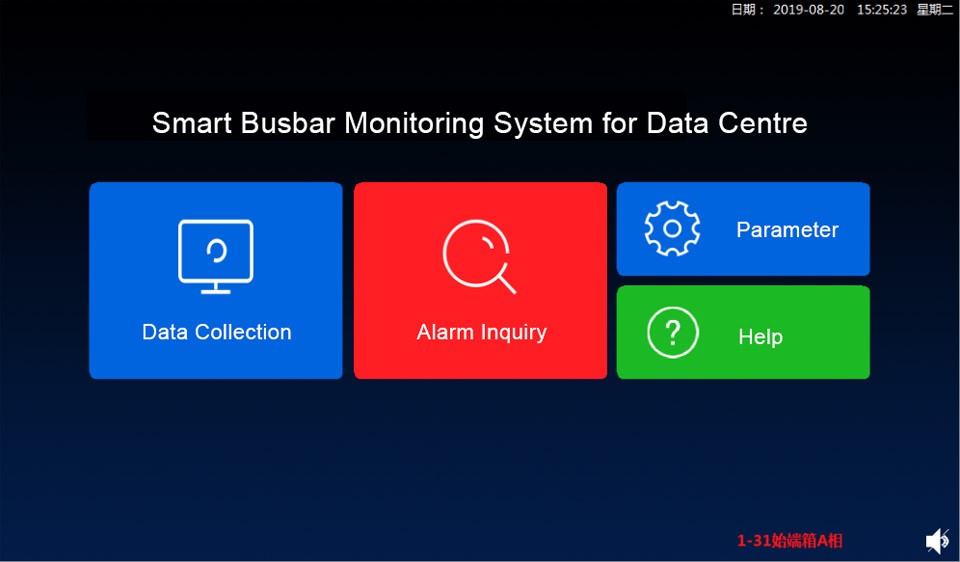

HMI ATP010kt
  • 1.10 inch touch screen
  • Real-time monitoring and display
  • Monitoring device alarm, communication and other parameters configured on the screen.

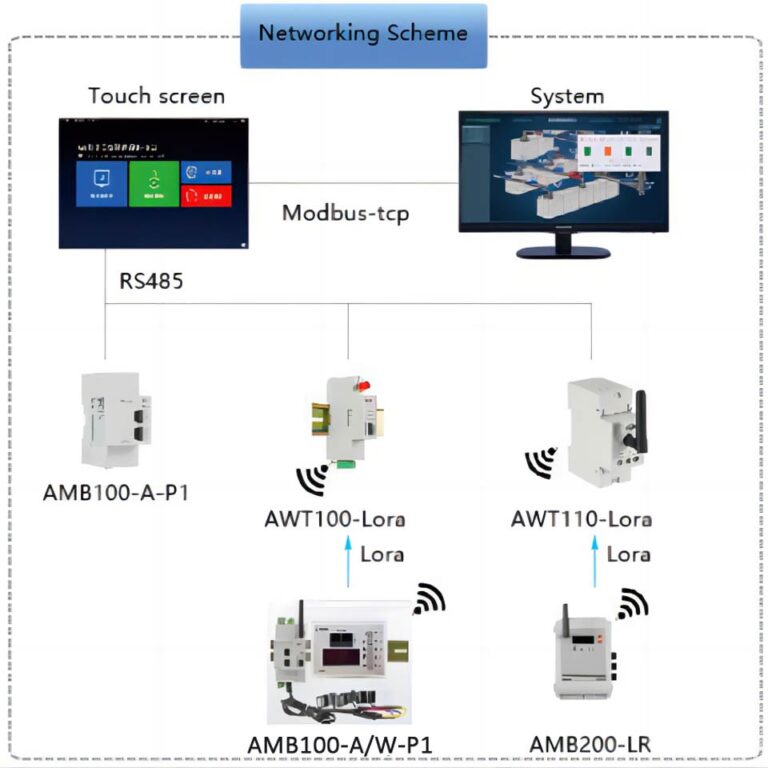

  • 2 channel RS485 and 1 channel Ethernet, data uploaded by RS485 or RJ45

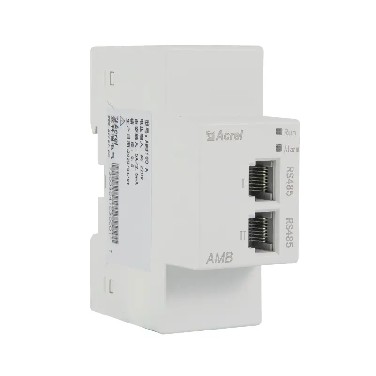

AC start box monitoring module AMB100-A-P1
  • DIN Rail 35mm
  • Measurement: 3 phase electrical parameters, 2DI2DO, 8 temp., 1 leakage current, 1 temp. and humidity
  • 1 in 1 out type RJ45 interface(Modbus protocol)
AC plug-in box monitoring module AMB110-A-P1
  • DIN Rail 35mm
  • Measurement: 3 phase electrical parameters, 2DI2DO, 4 temp., 1 leakage current, 1 temp. and humidity
  • 1 in 1 out type RJ45 interface(Modbus protocol)
DC start box monitoring module AMB100-D-P1
  • DIN Rail 35mm
  • Measurement: 1 DC circuit  parameters, 4DI2DO, 8 temp., 1 leakage current,1 temp. and humidity
  • ±12V output to power hall current sensor
  • 1 in 1 out type RJ45 interface(Modbus protocol)
DC start box monitoring module AMB110-D-P1
  • DIN Rail 35mm
  • Measurement: 3 DC circuits parameters, 4DI2DO, 4 temp., 1 leakage current, 1 temp. and humidity
  • ±12V output to power hall current sensor
  • 1 in 1 out type RJ45 interface(Modbus protocol)

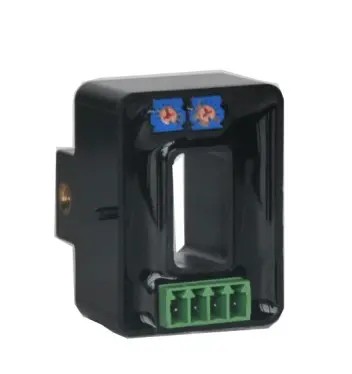

DC outgoing line hall effect current senso AHKC-BS
  • Current ratio: 100A/5V
  • Common Specification: 100A/5

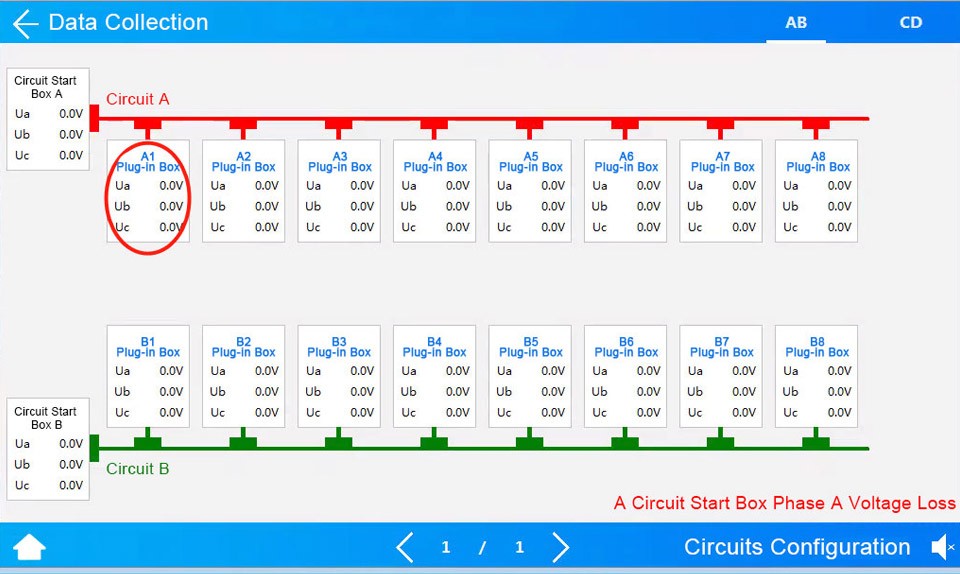

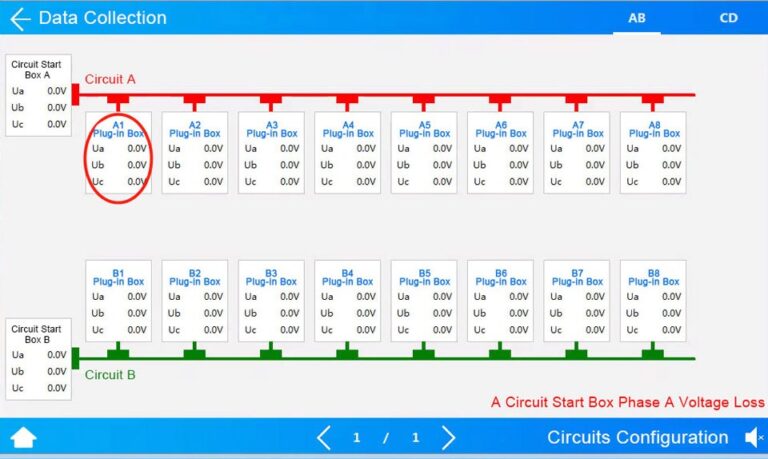

Human Machine Interface
