Application

The IoT platform is suitable for power management. The gateway update data to the platform via MQTT TCP HTTP protocols, and can monitor electrical parameters such as current, voltage, active power, and power factor. Acrel IoT based electricity energy meter with 485 port can connect to IoT platform via gateway AWT100

Structure

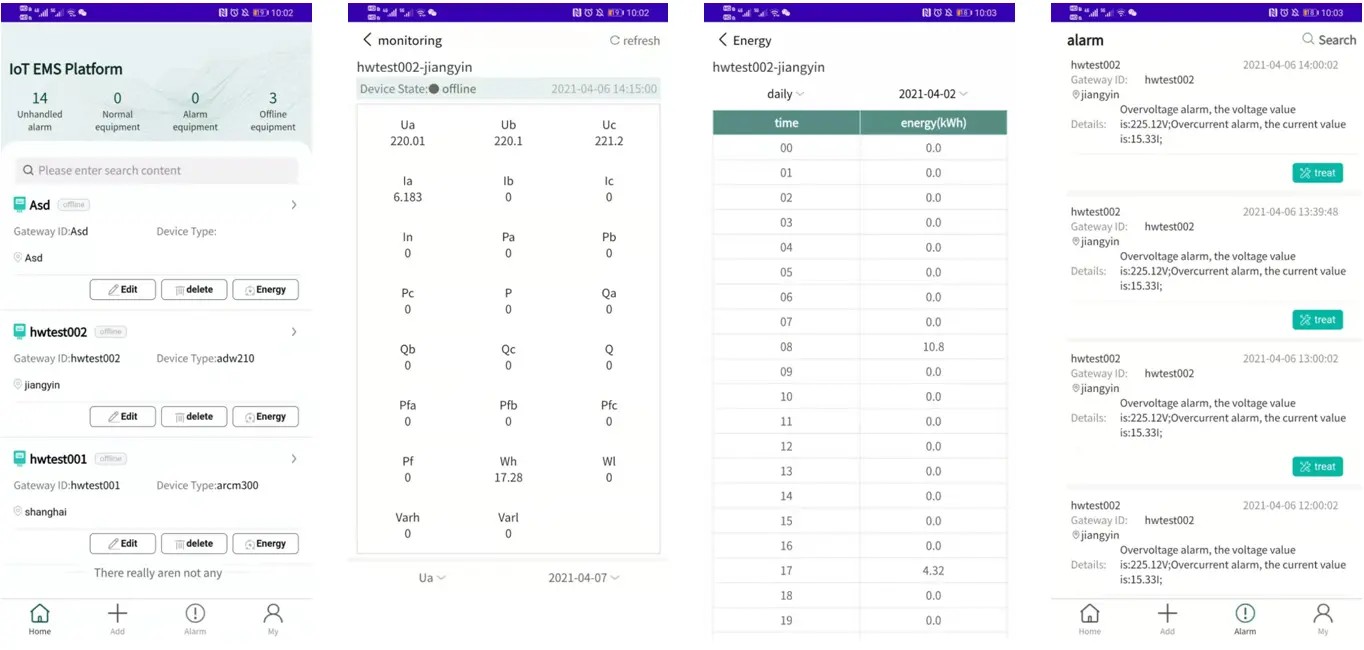

 Main Functions

1) Alarm Analysis

2) Energy situation

3) Details of electrical parameters

4) Equipment status

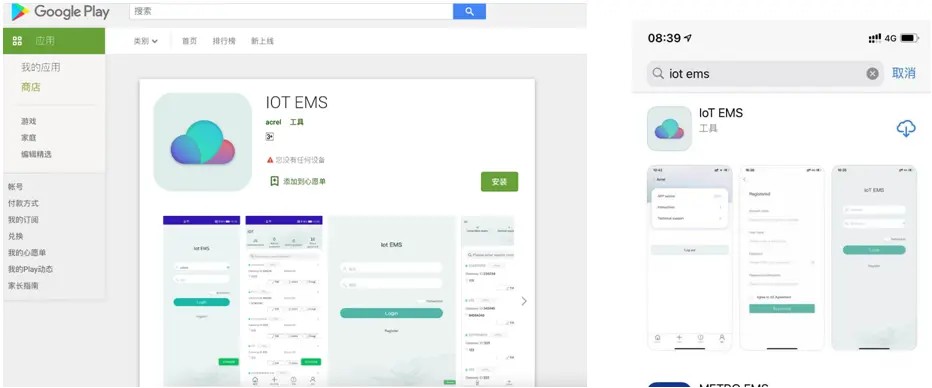

5) APP

Product Selection

Anet-1E2S-4G Gateway
  • Downlink:2* RS485
  • Uplink:4G

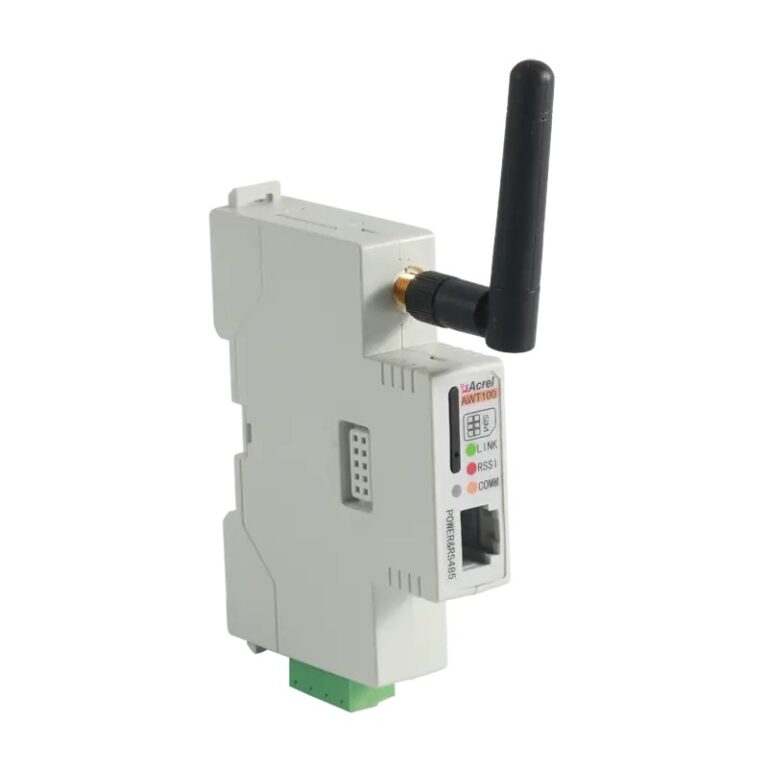

AWT100-4GHW Gateway
  •  Downlink: RS485
  • Uplink:4G, WiFi or Ethernet

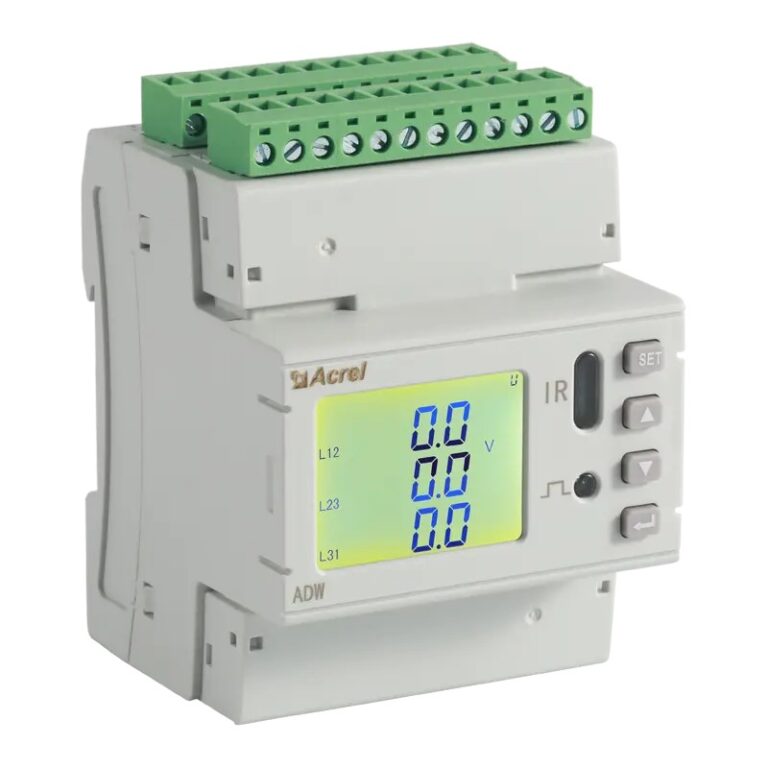

ADW210 IOT meter
  • Measurement: 4 circuits 3 phase voltage, current, power, power factor , etc.
  • Max demand
  • Communication: RS485

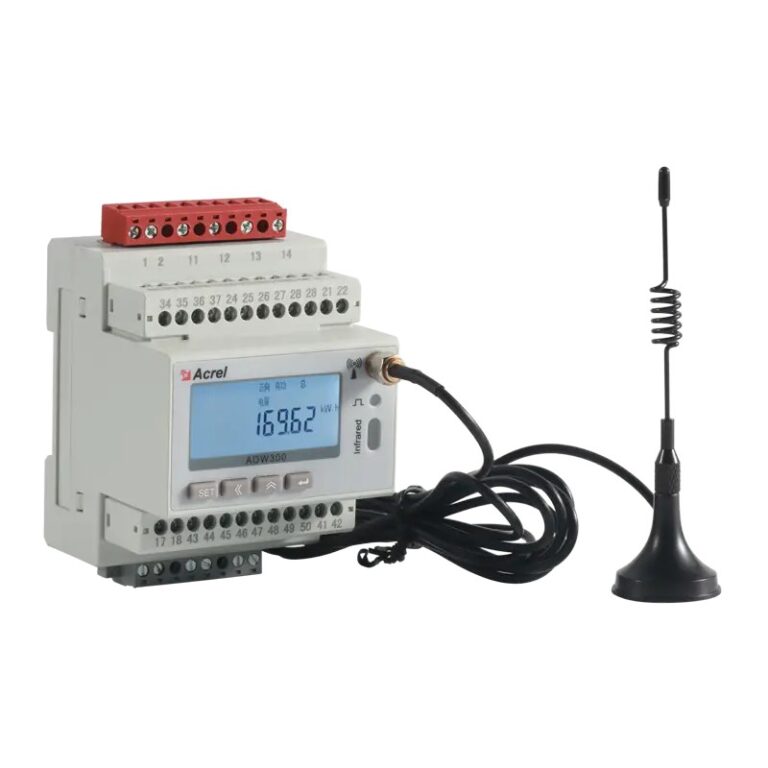

ADW300 wireless meter
  •  Measurement: 3 Phase voltage,current,power,power factor,etc.
  • Communication:RS485, LoRa, 4G, Wifi
  • Max demand
  • Accuracy:Class 1

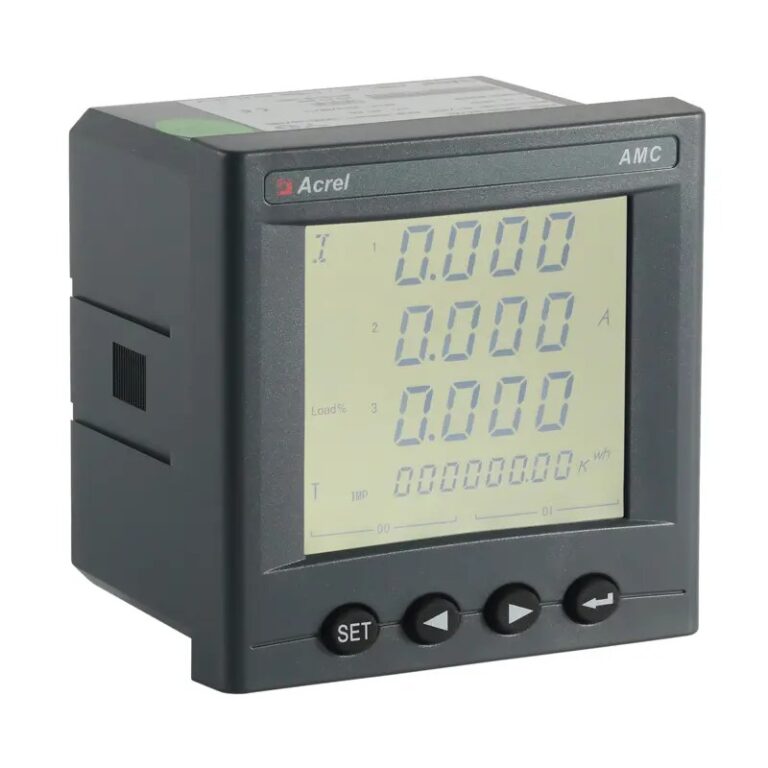

AMC96L-E4/KC Multifunction Meter
  • True RMS Measurements
  • THD with 2-31st Harmonics
  • Max/Min Log with Timestamp
  • 4DI&2DO or 2DI&2DO&2AO
  • Standard one Energy Pulse Output

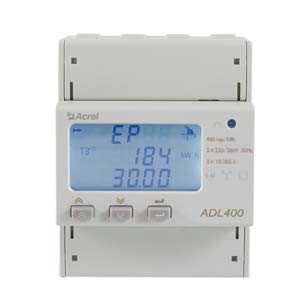

ADL400
  • Three phase, AC 3×220/380V, 3×1(6)A, 3×10(80)A
  • RS485(MODBUS-RTU)
  • Set parameters
  • KWH Class 0.5

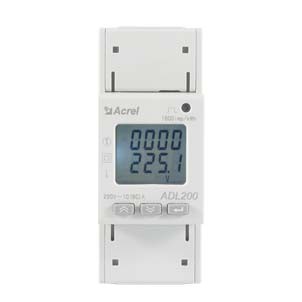

ADL200
  •  Single phase, AC220V,10(80)A
  • RS485(MODBUS-RTU)
  • Set parameters
  • kWh Class 1
