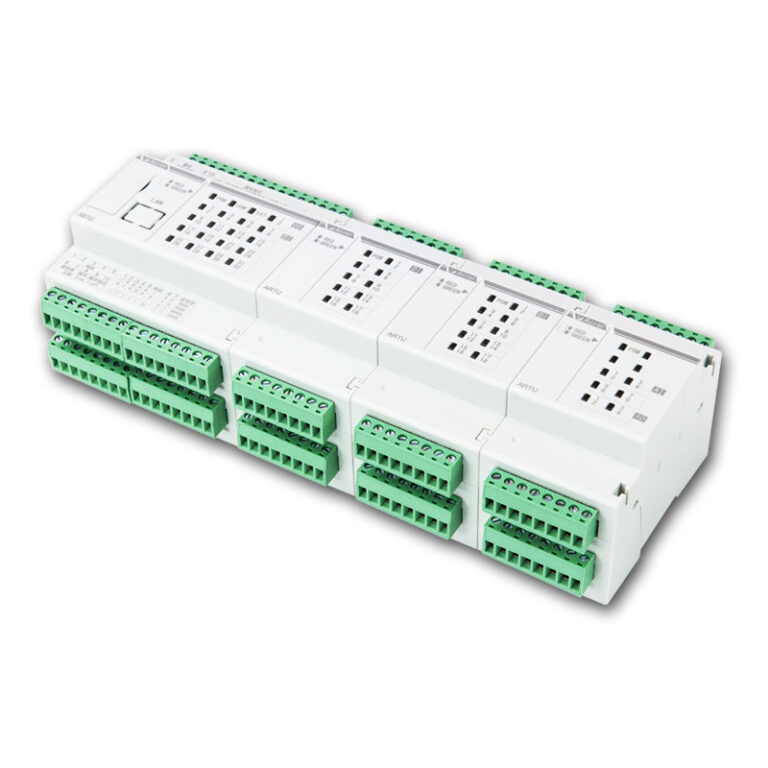

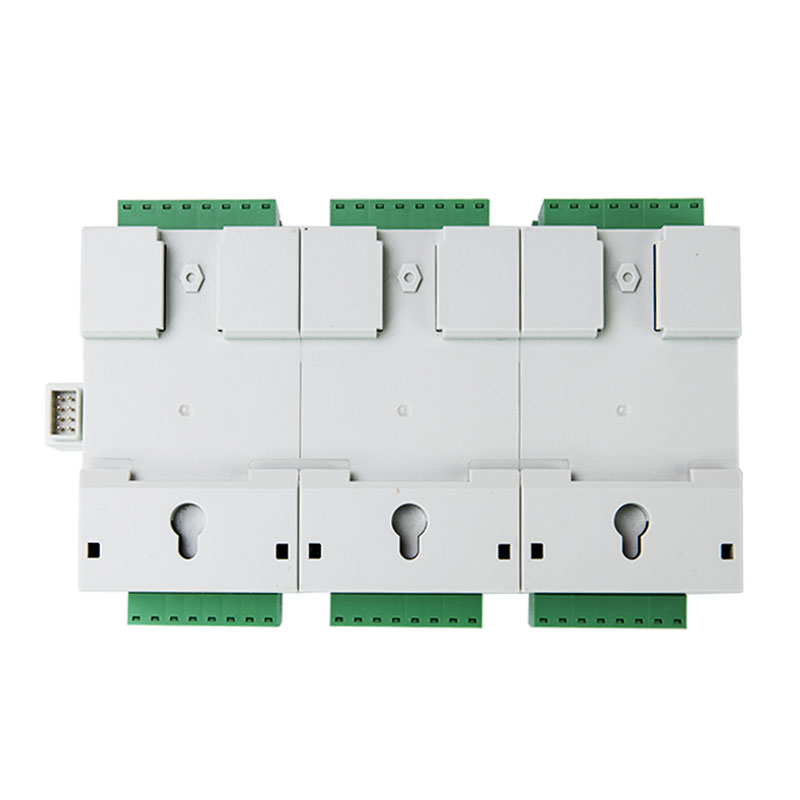

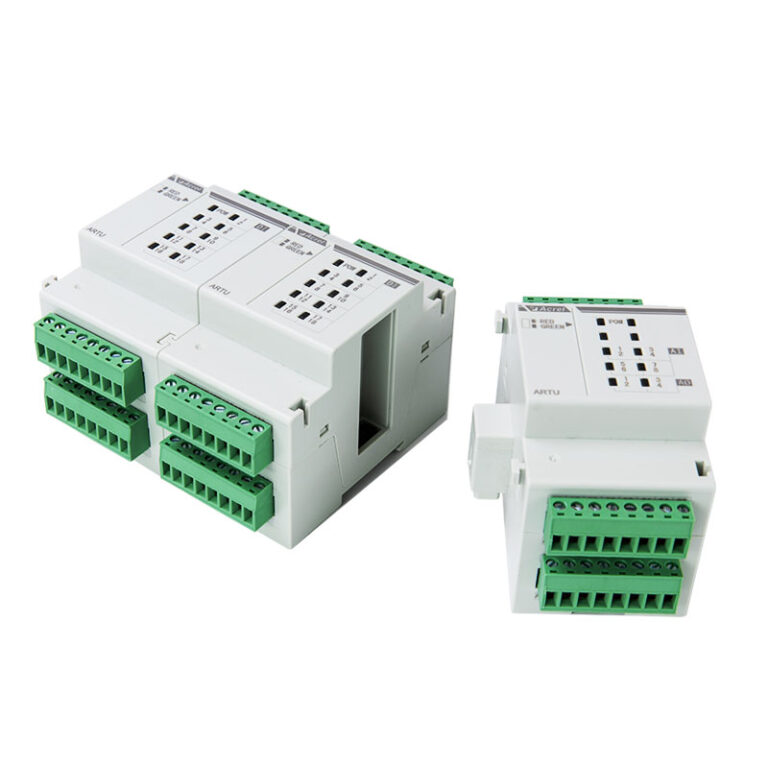

ARTU100 Series Remote Terminal Units

RS485 (MODBUS -RTU)
Channel state indicator and communication state indicator
24VDC (±10%); 220VAC, allow AC/DC 85~265V
2-way 10-100mbits adaptive Ethernet communication, support IPV4, IPV6.

Description

ARTU100 series remote communication& control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.

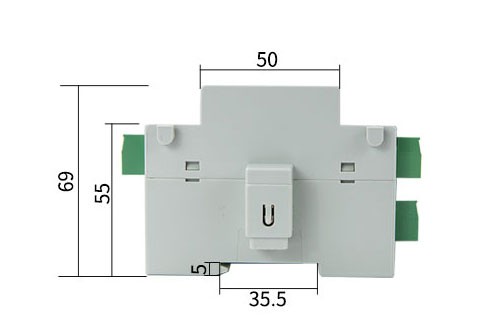

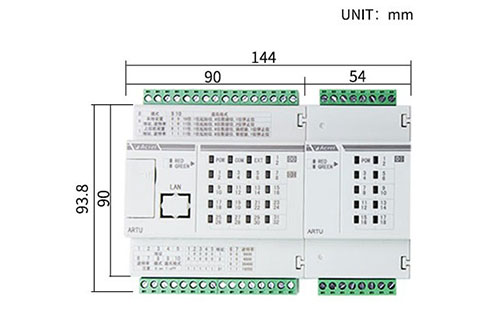

Parameters

PQWER SUPPLY	AC/DC 85-265V 、 DC48V
POWER CONSUMPTION	≤9W (excluding modules); ≤15W (including modules, up to 3 modules)
MODEL	ARTU100-K32	32-path DI (active/passive, optional)
	ARTU100-K16	16-path DI (active/passive, optional)
	ARTU100-KJ8	8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A
COMUMICATION	485 communication	RS485 interface	2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps
OTHER	Dial switch	10 bits
	Indicator light	20 indicator lights

Functions

2-way 10-100mbits adaptive Ethernet communication, support IPV4, IPV6.
It can realize 8-way Sever/Client function, and realize 8-way client connection or 8-way server connection at the same time.
The protocol conversion between MODBUS TCP and MODBUS RTU can be realized.
Support Web page parameter configuration,UDP broadcast,SNMMP network management,DHCP automatic access IP.
8-way RS485 communication, baud rate support 1200-115200 can be set, data bit, check bit, stop bit can be set;each 485 can be connected to 30 meters.

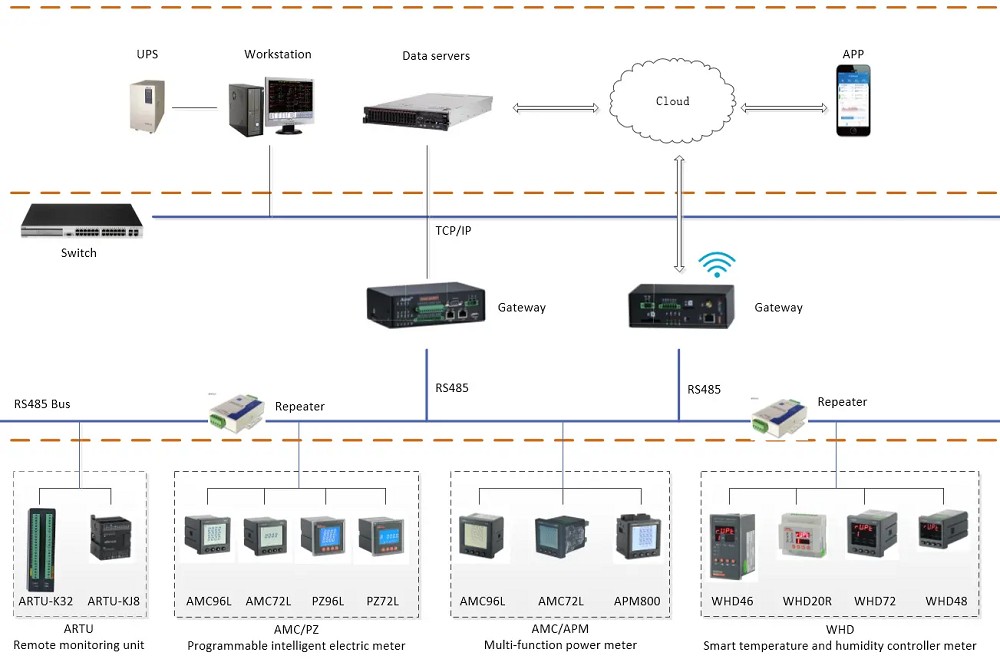

Network

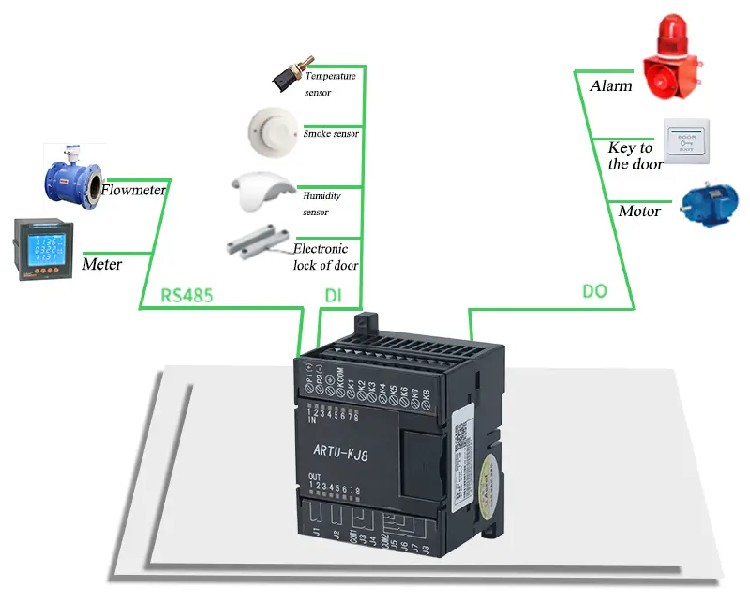

Wiring

Download

ARTU100 Remote Terminal Units Download
