Medical Isolation Power Supply System

Application

With the widespread application of electronic medical equipment in the hospital field, leakage current poses an increasing threat to patients, especially in places where life is critical. Patients are directly inserted into various electrodes and sensors during surgery or under anesthesia. In the human body, small leakage currents may cause the patient to be electrocuted. In addition, some medical equipment is used to maintain the lives of critically ill patients. Once the hospital isolation panel equipment is powered off, it will also threaten the lives of patients. Therefore, the electrical design of hospital isolated power systems for the special place of medical treatment should be carried out in strict accordance with national standards and regulations.

Hospital isolated power systems equipment is suitable for hospital operating rooms and ICU (CCU) intensive care units, and can provide safe, continuous and reliable isolated power supply for hospital.

Structure

Functions

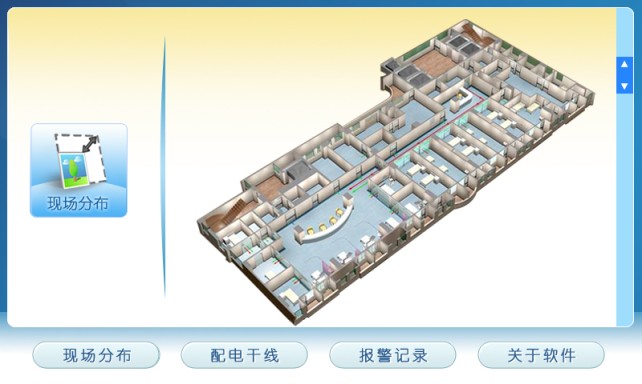

Primary connection diagram and field distribution display

Real-time data acquisition and display

Fault Alarm

Remote parameter setting and inquiry

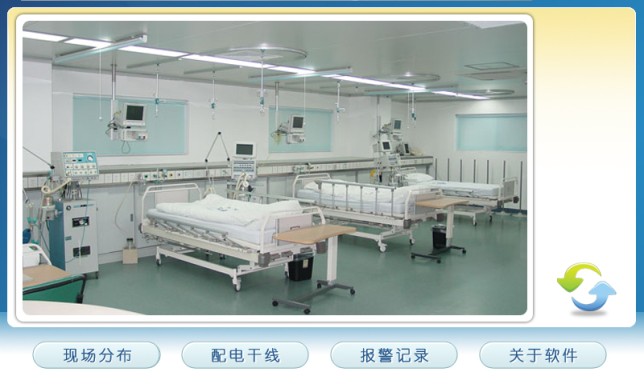

Graphic display

Display the insulation status, load status, and the isolation transformer temperature of each set of isolated power systems in graph form.

Cabinet

Typical Solution

4 pieces solution:

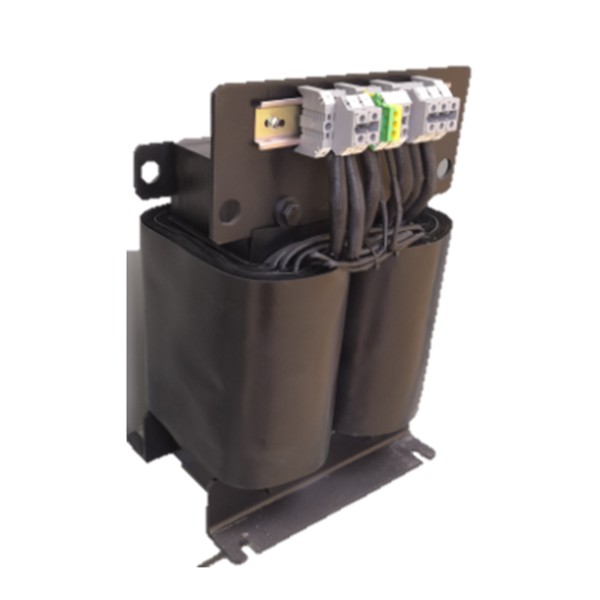

1. AITR series medical isolation transformer;

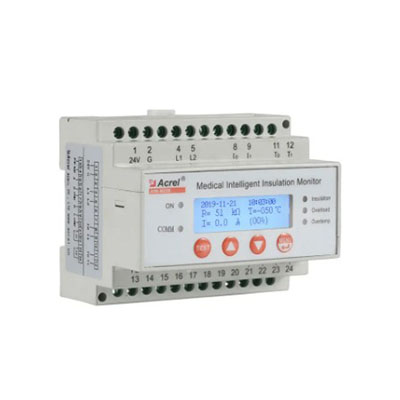

2. AIM-M10 Medical intelligent insulation monitor;

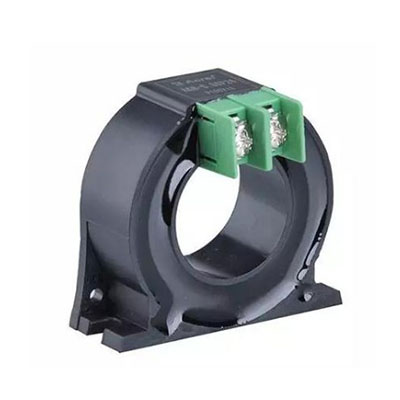

3. AKH-0.66P26 current transformer;
4. AID10 external alarm and display instrument

5 pieces solution

1. AITR series medical isolation transformer;
2. AIM-M100 Medical intelligent insulation monitor;
3. AKH-0.66P26 current transformer;

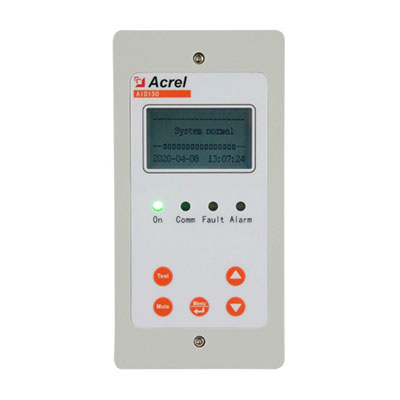

4. AID150 external alarm and display instrument;

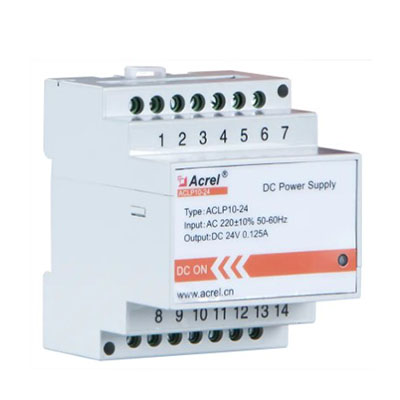

5. ACLP10-24 instrument power supply.

6 pieces solution

1. AITR series medical isolation transformer;
2. AIM-M300 Medical intelligent insulation monitor;
3. AKH-0.66P26 current transformer;
4. AID150 external alarm and display instrument;
5. HDR-60-24 instrument power supply;

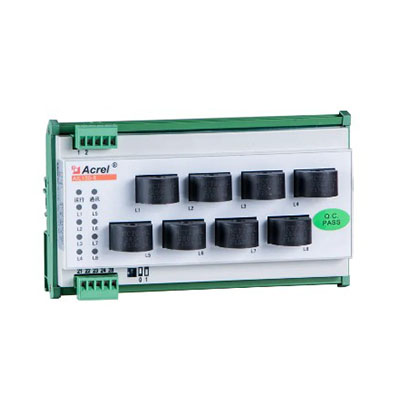

6. AIL160-6 insulation fault locator.

7 pieces solution

1. AITR series medical isolation transformer;
2. AIM-M200 Medical intelligent insulation monitor;
3. AKH-0.66P26 current transformer;
4. HDR-60-24 instrument power supply;

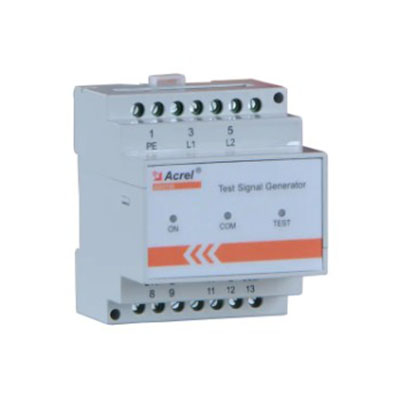

5. ASG150 tests the signal generator;
6. AIL150-4 insulation fault locator;
7. AID150 alarm and display instrument.

Product Selection
