1.Distributed Photovoltaic Solutions

Nowadays, grid companies usually require photovoltaic grid-connected systems to be irreversible, that is, the electricity generated by photovoltaic grid-connected systems is consumed by local loads, and excess electricity is not allowed to supply to the grid. The system can regulate power generation in order to prevent the photovoltaic grid-connected system from generating reverse power.

1.Solution for PV anti-reflux

2.Solution for PV DC coupled energy storage

3.Solution for photovoltaic AC coupled energy storage

Related Products

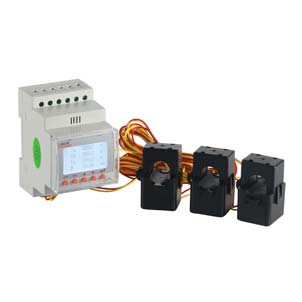

ACR10R
  • Rated voltage: 3X220/380V(400V)
  • Rated Current: 80A ,120A, 200A, 300A
  • Communication:RS 485 Modbus RTU
  • Certificate: CE

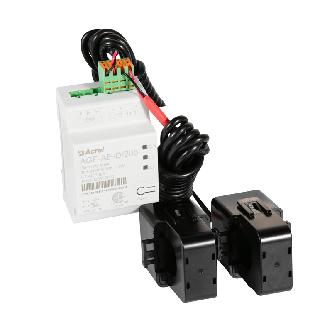

AGF-AE-D/200
  • US standard
  • Rated voltage: AC 120V/208V，240V
  • Rated current: AC 100A , 200A
  • DIN 35 mm

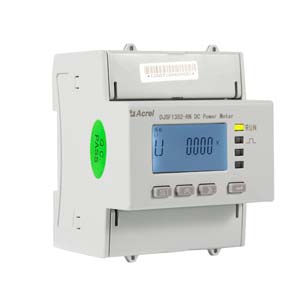

DJSF1352-RN
  • Din rail mounting
  • Measure DC 0-1000V
  • RS485 communication (Modbus protocol)

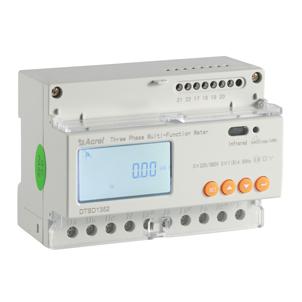

DTSD1352-C
  • Three phase smart meter
  • CT input 1*(6)A
  • Direct connection max. current 80A
ACREL PZ96L
  • Three phase power meter
  • CT input 1*(6)A
  • Panel size 96*96mm

2. Centralized PV Solutions

In the solar PV power generation system, the smart PV combiner box reduces the connection between the solar PV cell array and the inverter. The box can monitor the operating status of the solar panels, lightning protector and DC circuit breaker. With RS485 interface, the device can upload the measured and collected data and equipment status.

Acrel Combiner Box
  •  Accuracy：0.5
  • DC ± 18A
  • Communication: RS485 Modbus RTU
PV Confluence Acquisition Device
  • Accuracy：0.5
  • Rated Current: DC 0-20A
  • Voltage: DC1000V,DC1500V
  • Communication:RS 485 Modbus RTU
  • Maximum 24 circuits
APView500 Power Quality Monitor
  • provide harmonic analysis, waveform sampling, voltage dips/swells/interruptions monitoring, flicker monitoring , voltage unbalance monitoring, event recording and measurement control.
