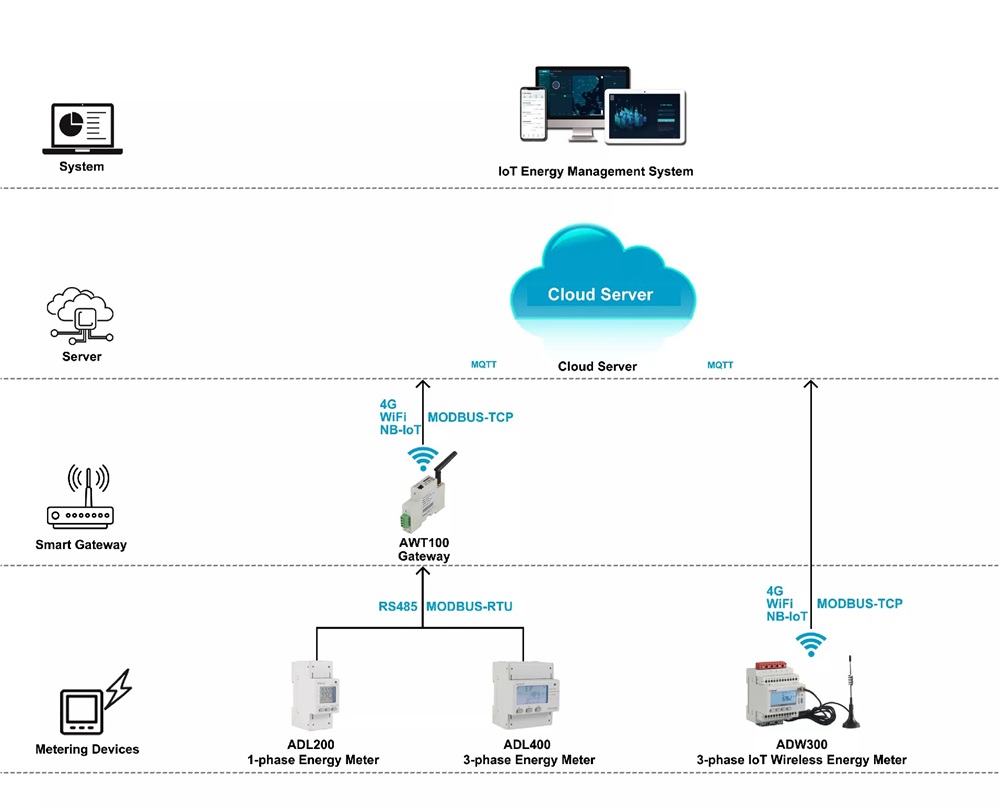

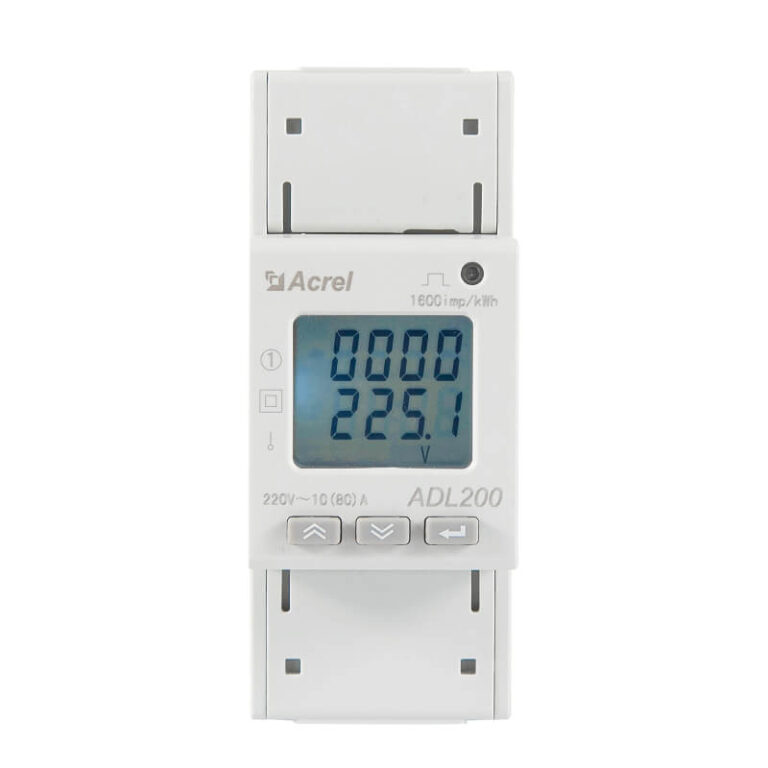

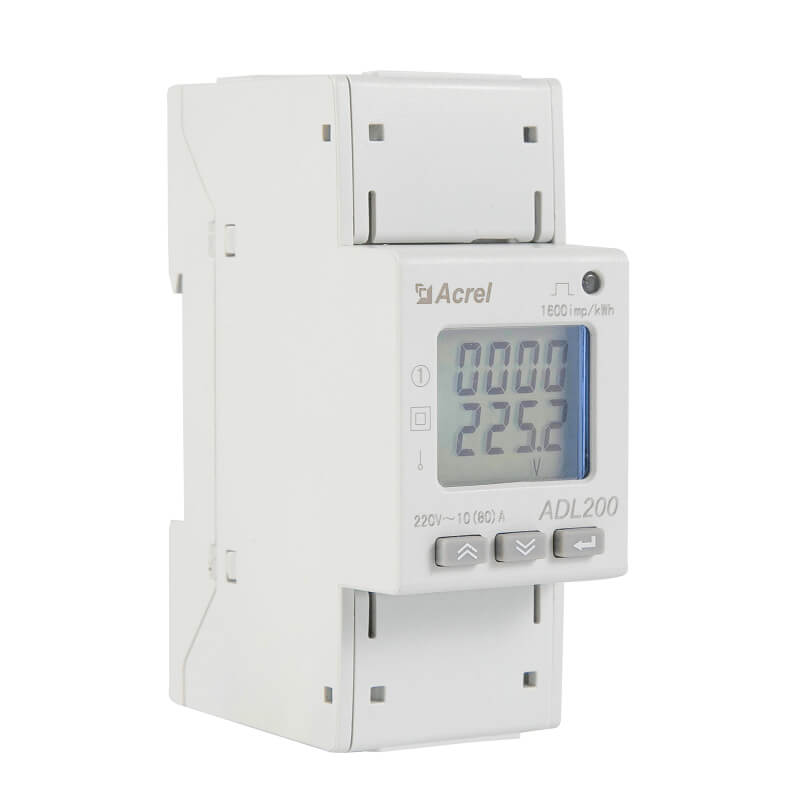

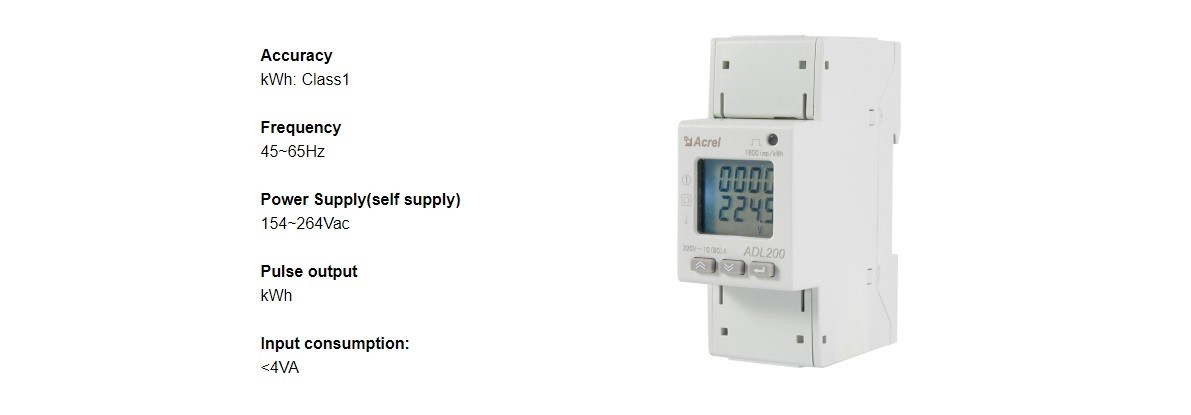

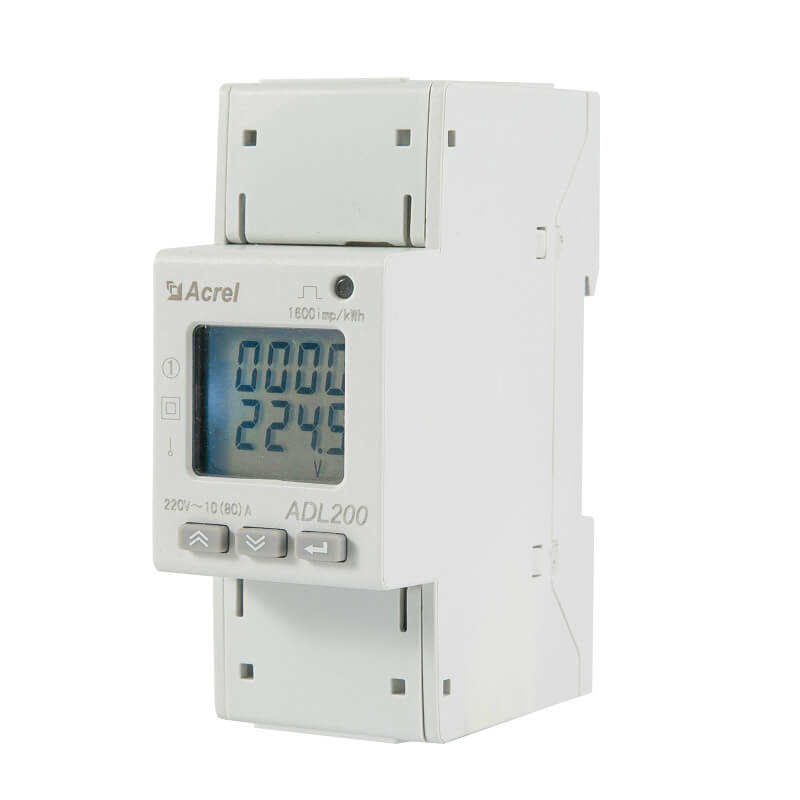

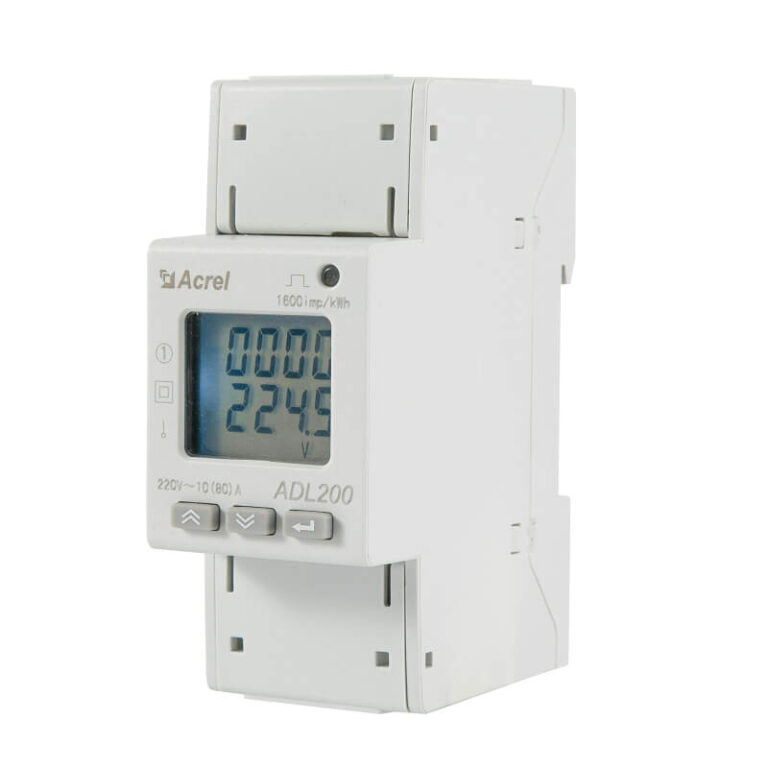

Acrel ADL200 single phase energy meter is mainly used to measure single phase active energy of low-voltage network, and can measure voltage, current, power and other electricity at the same time, and can be equipped with RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption.
| Specification | 1 phase | |
| Voltage | Rated voltage | AC 220V |
| Rated frequency | 50Hz | |
| Consumption | <10VA | |
| Current | Basic current | 10A |
| Maximum current | 80A | |
| Starting current | 4‰Ib | |
| Consumption | <4VA | |
| Measurement performance | Accurary of measuring | kWh Class 1.0 |
| Range of measuring | 0-99999999kwh | |
| Clock accuracy | Error≤0.5s/d | |
| Active pulse | Width | 80±20ms |
| Constant | 1000imp/kWh | |

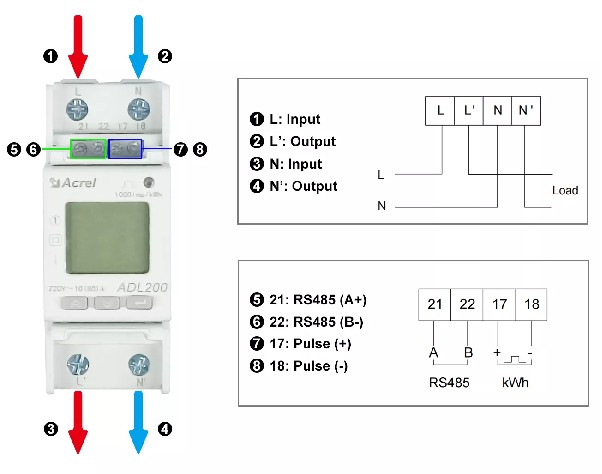

| Communication | Interface | RS485(A+、B-) |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | Modbus-RTU | |
| Temperature range | Work | -25℃-55℃ |
| Storage | -40℃-70℃ | |

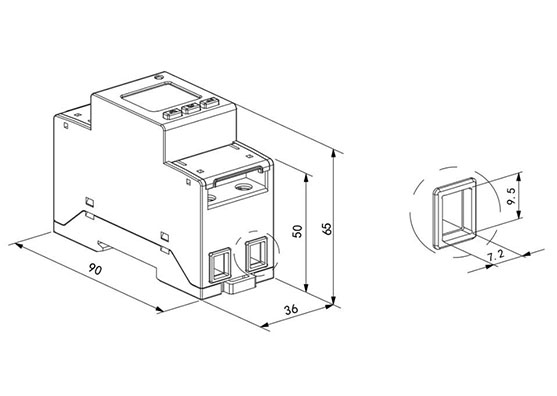

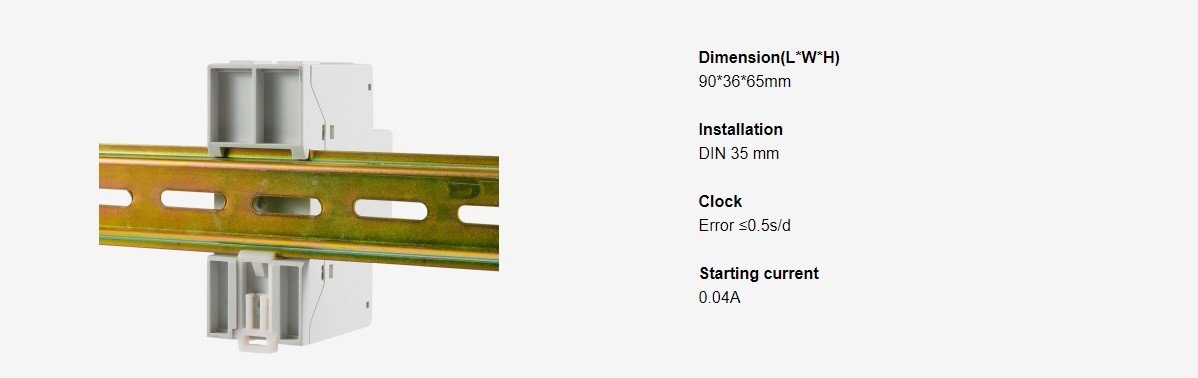

| Mechanical performance | Length × Width × Height | 90mm×36mm×65mm |
| Strong current terminal Torque | <1.8Nm | |
| Humidity | ≤95%(No condensation) | |
| Altitude | <2000m | |
