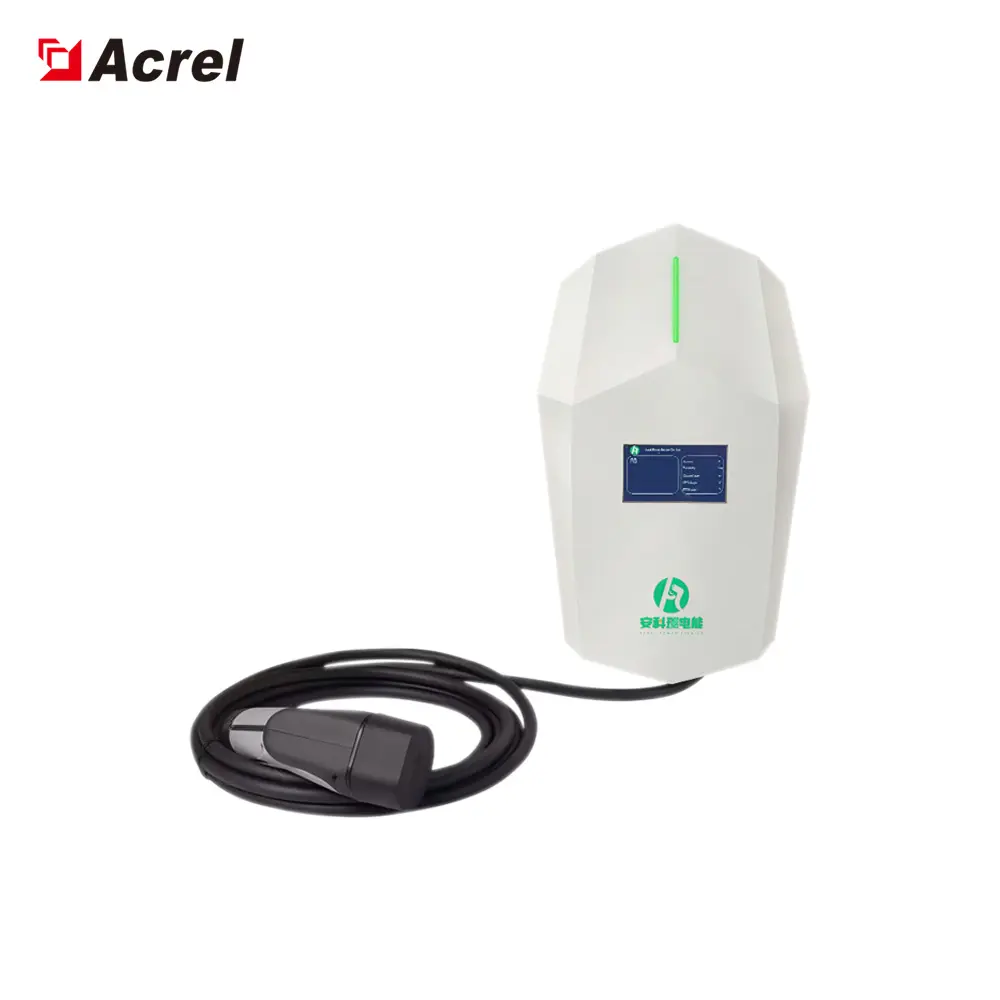

The EVSE (AEV300-AC007D-EU) is an AC charging station that you can use to supply electricity to an EV. offers tailor-made,intelligent and network charging solutions for your company or home.The EVSE can connect to the internet via GSM,WiFi or LAN.

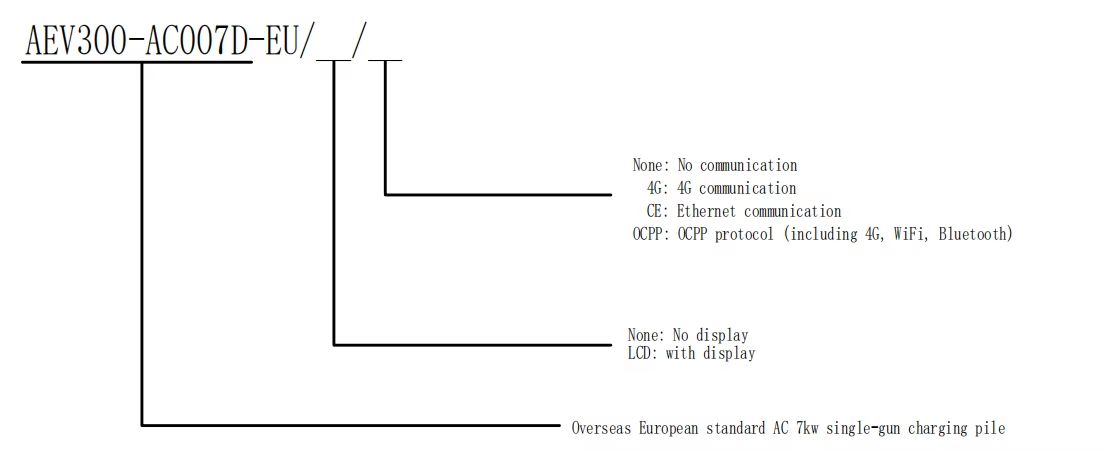

| Type | AEV300-AC007D-EU | |

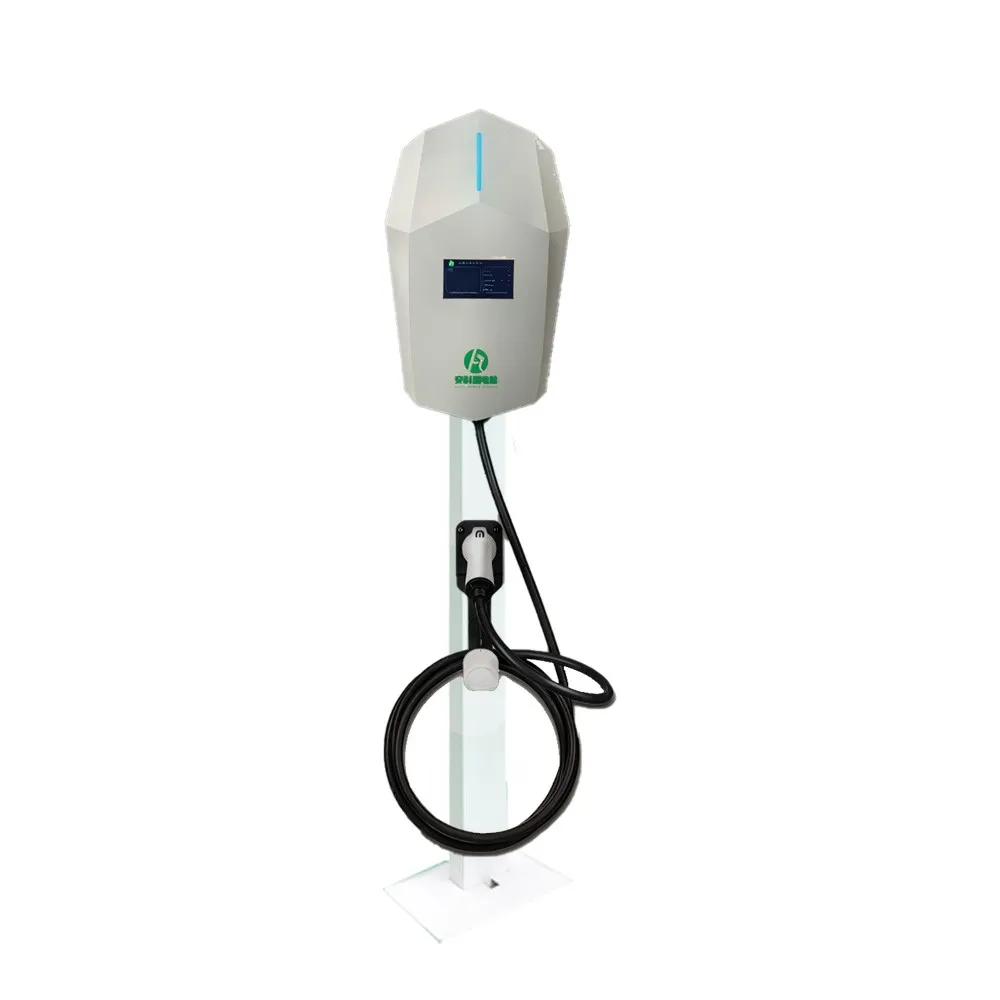

| Installation | Wall-mounted | Column type (optional) |
| Productspecifications | Rated power | 7KW |
| Input voltage | AC230V | |
| Input mode | Single-phase three-wire system | |
| Operating frequency | 50HZ/60HZz | |
| Output voltage | AC230V | |
| Output current | 0A~32A | |
| Output interface | Single shot | |
| The length of the AC charging cable | 5 meters | |
| Ingress protection | IP54 | |
| Material | PCIABS | |
| Operating ambient temperature | -30ºC-55ºC | |
| Protection features | Lightning protection, overload protection, shortcircuit protection, leakgae protection ( optional) | |
| Display | A 4.3-inch display is available as an option | |
| Communication | Option 1 | 4G with WIFI&BT with LAN with Display |
| Option 2 | WIFI&BT with LAN with Display | |
| Option 3 | WIFI&BT with Display | |
| Option 4 | Only Display | |
| Option 5 | 4G with WIFI&BT with LAN without Display | |
| Option 6 | WIFI&BT with LAN without Display | |
| Option 7 | WIFI&BT without Display | |
| Option 8 | None | |
*Waterproof and dustproof
*Temp control protection
*Overcurrent protection
*Static protection
*Overvoltage protection
*Leakage protection
*Anti-lightning protection
*Short circuit protection
Acrel is a high-tech enterprise focusing on research, production, sales and service. We mainly provide users with system solutions for energy efficiency management and electrical safety.
