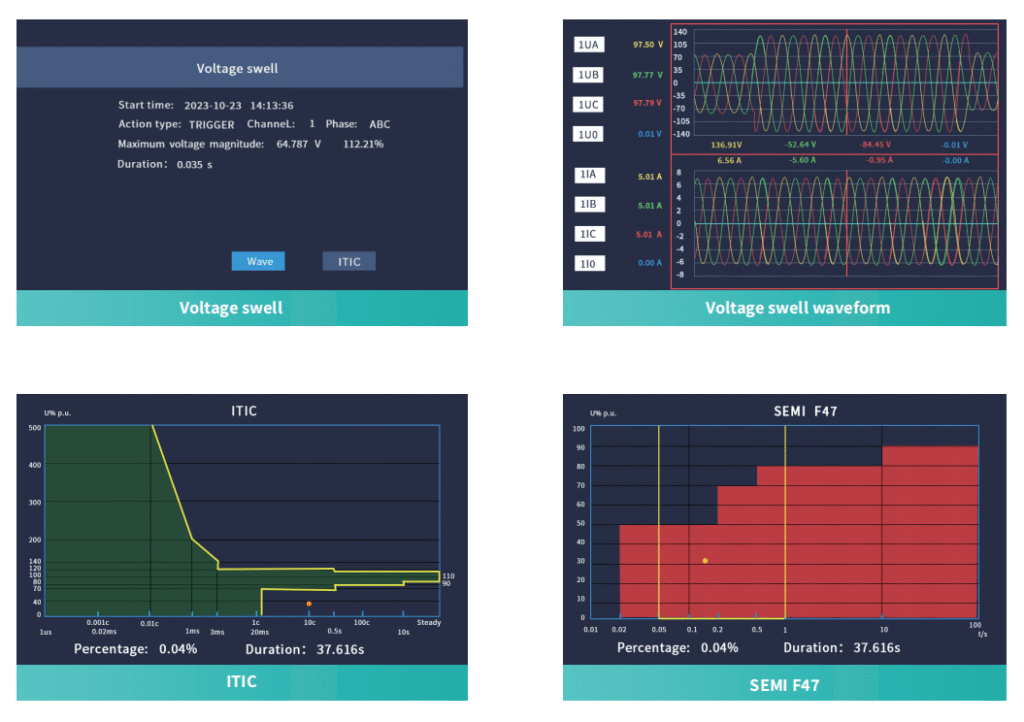

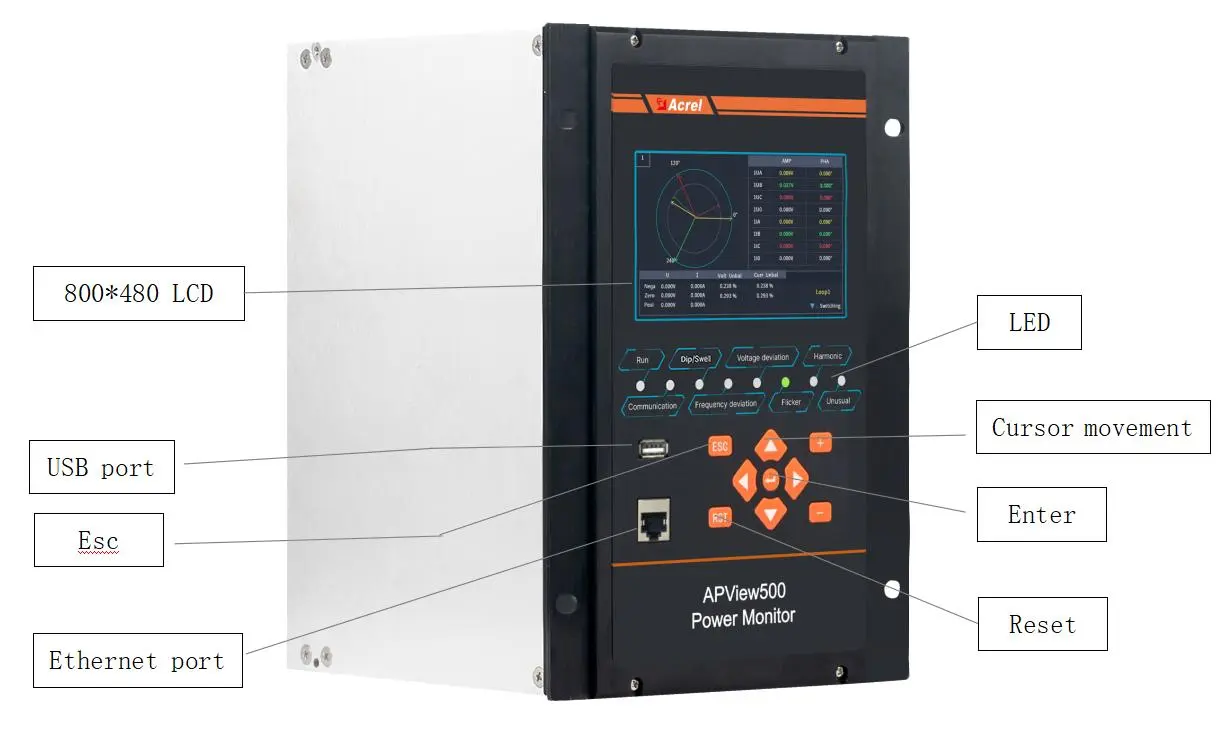

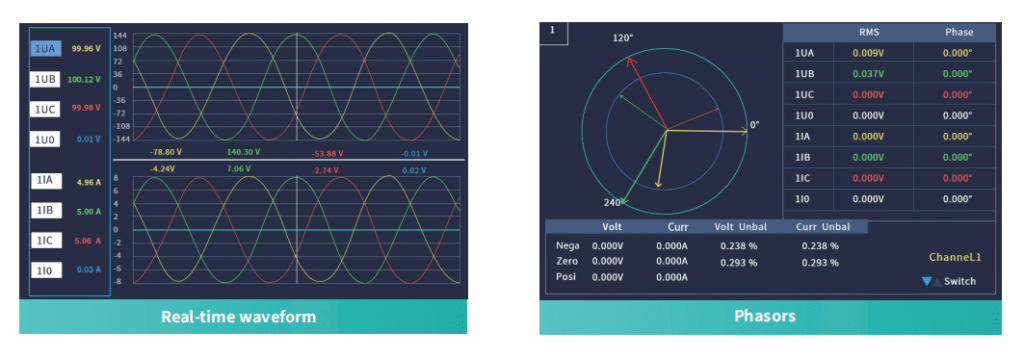

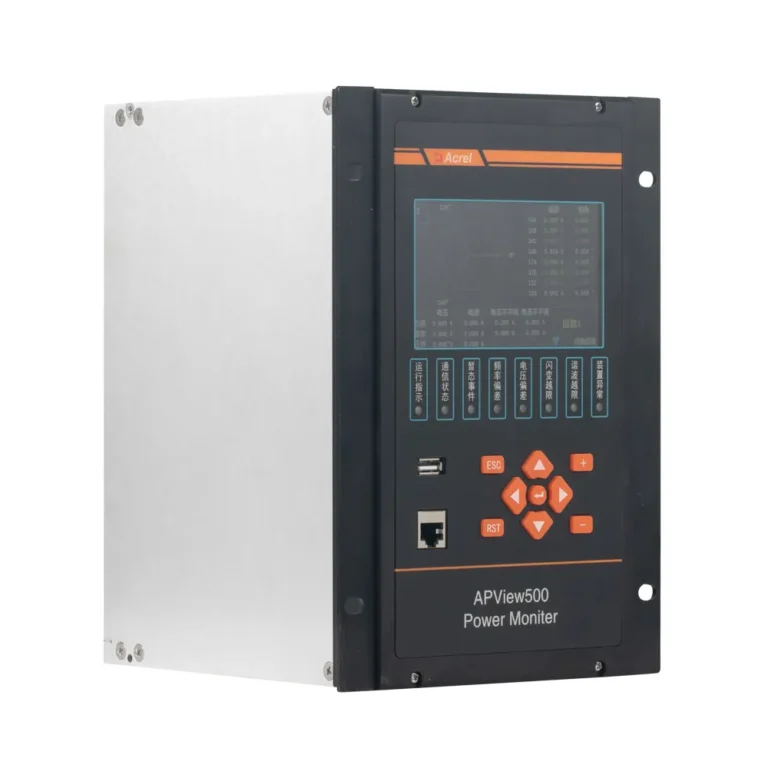

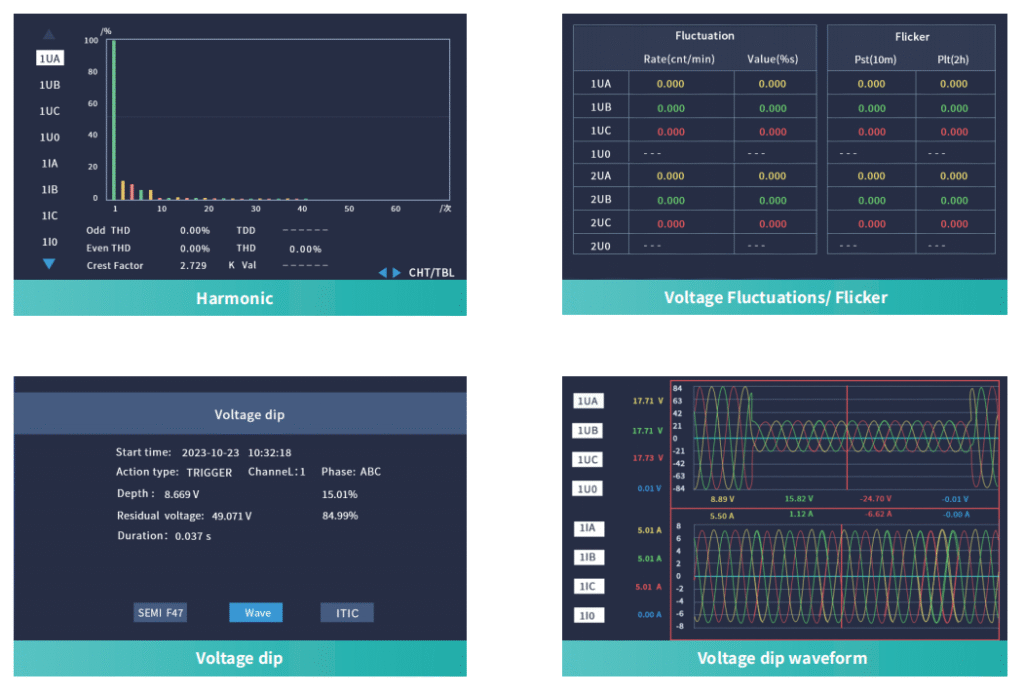

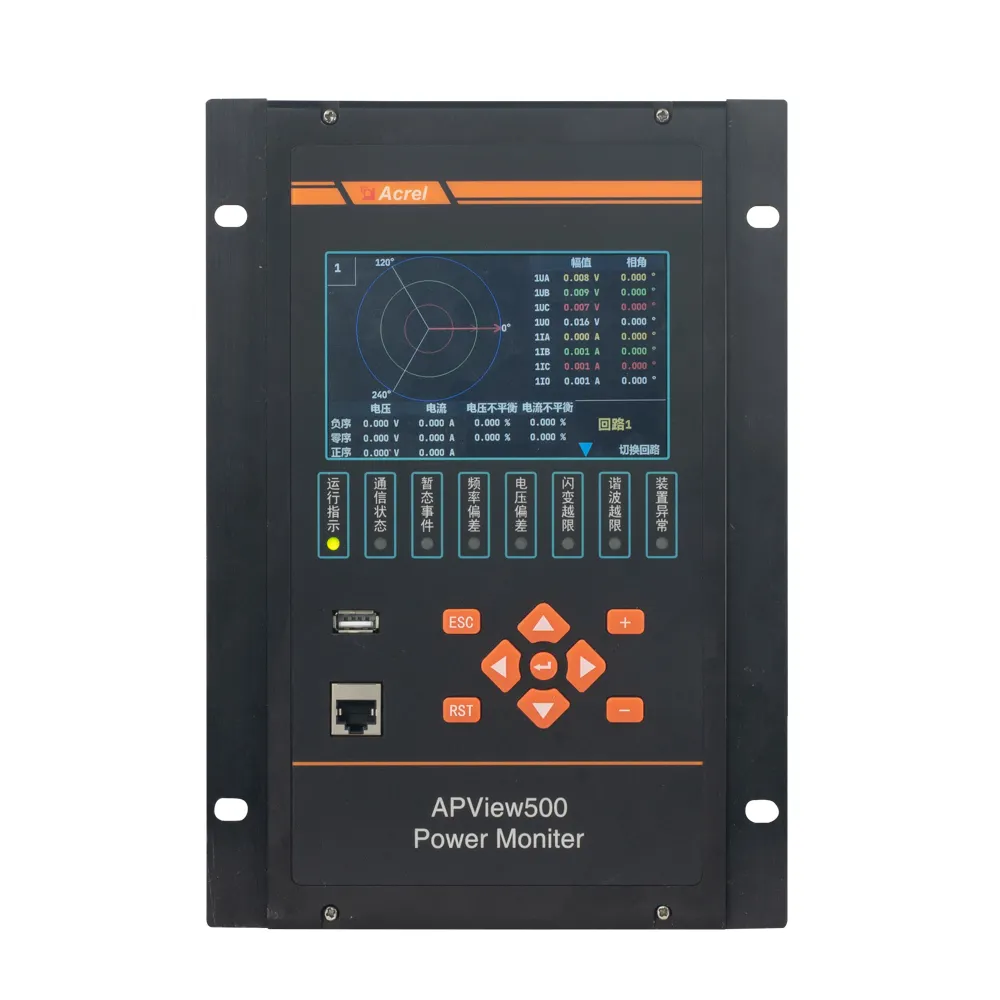

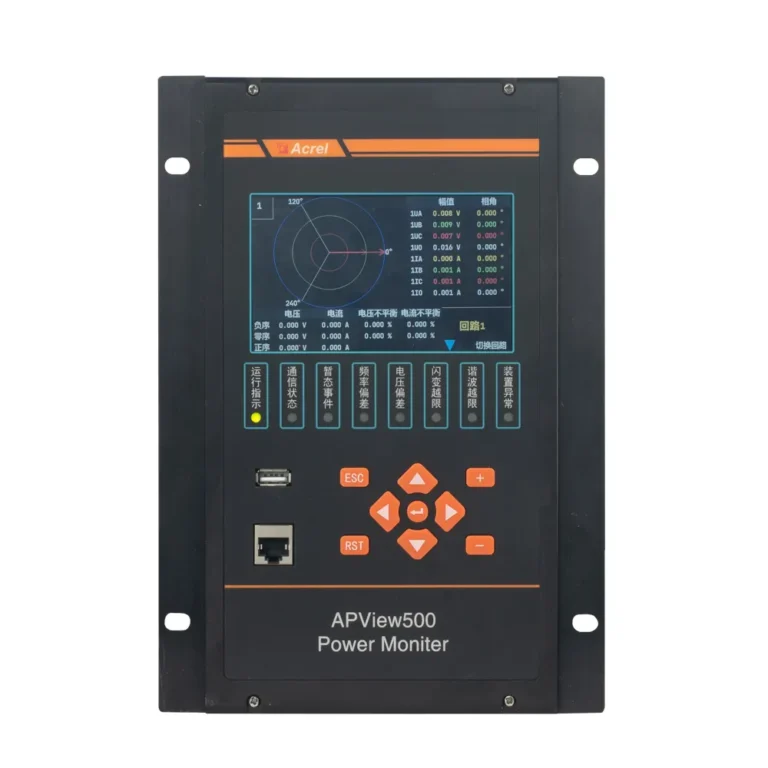

The APView series Power Quality Analyzer utilizes a high-performance multi-core platform and an embedded operating system. It includes many functions such as harmonic analysis, waveform sampling, voltage sag/swell/interruption detection, flicker monitoring, voltage unbalance monitoring, event recording, and measurement control.

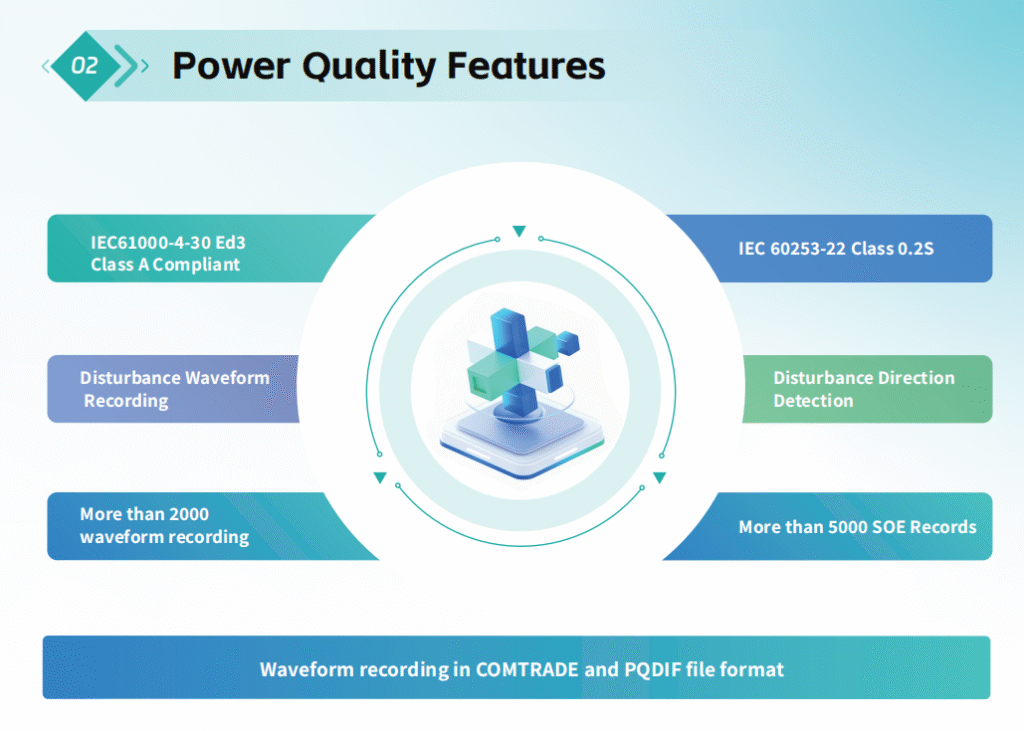

The analyzer complies with such standards as IEC 62053-22 Class 0.2S, IEC61000-4-30 Ed3 Class and IEC61850 for Substation Automation System.
It is suitable for power quality monitoring in 110kV and below power supply systems and is widely used in industries such as semiconductor, petrochemical, steel, hospitals, data centers, and transportation buildings, as well as in renewable energy system like photovoltaic, energy storage, and wind power.

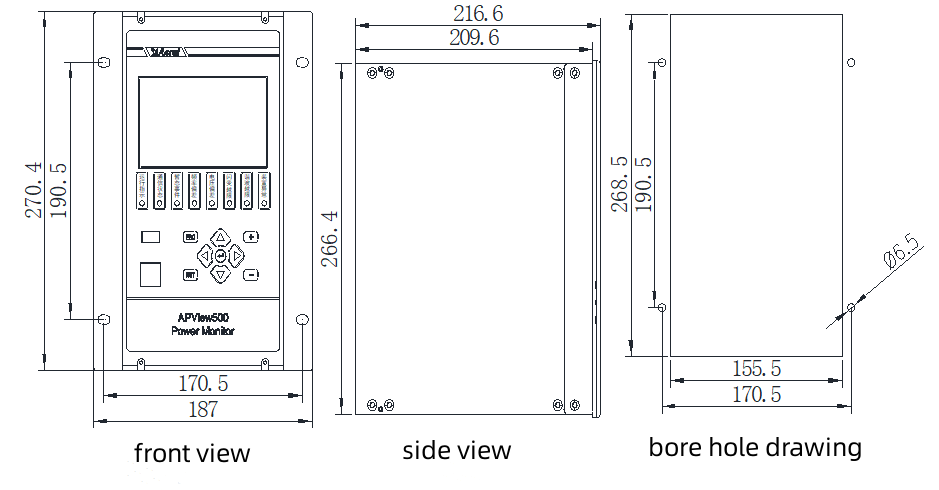

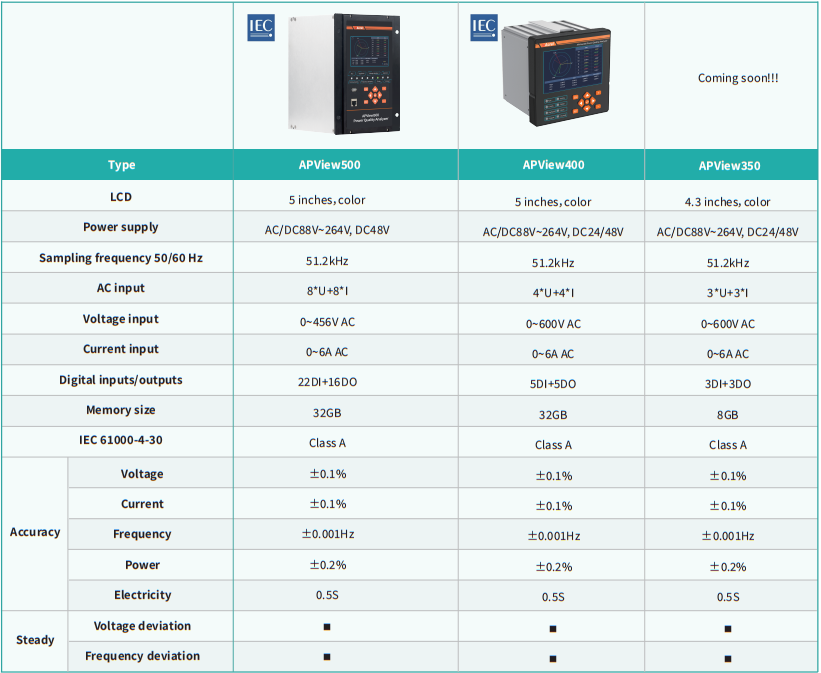

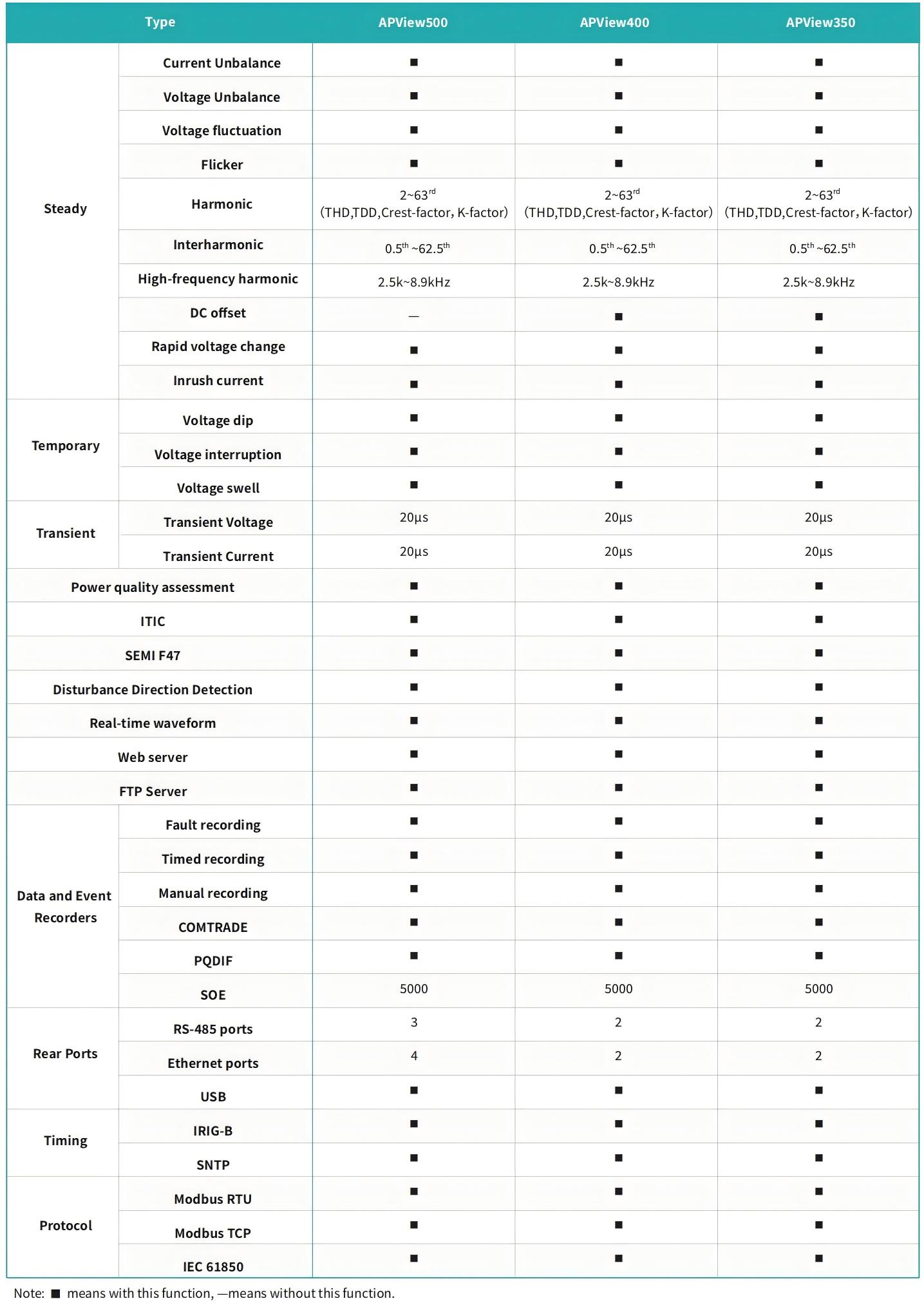

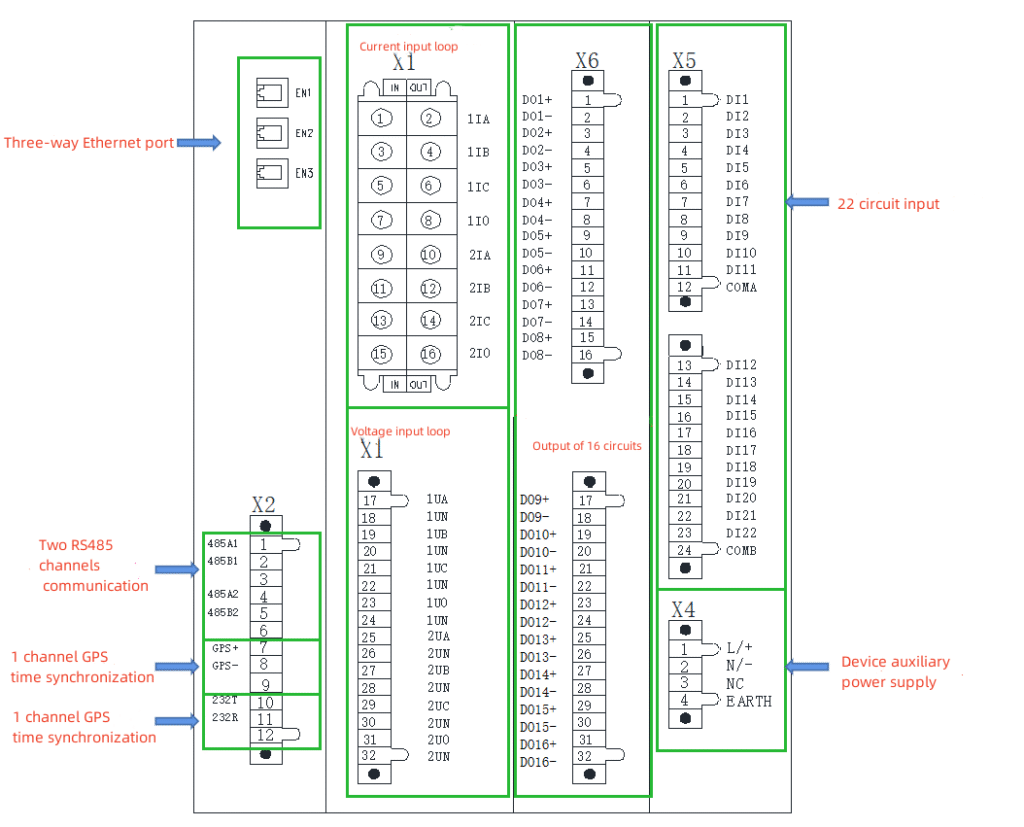

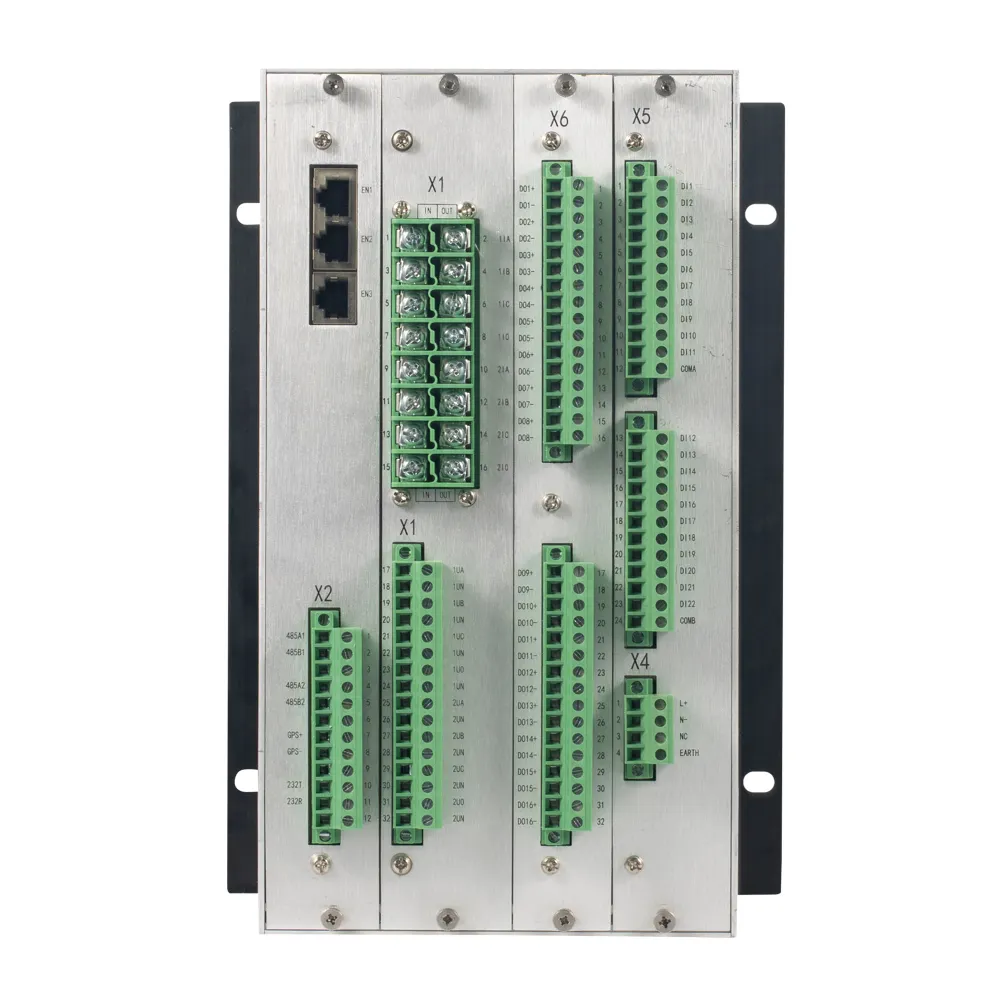

| Technical Parameter | Value |
| Rated Value | AC voltage:AC/DC220V, AC/DC110V or DC48V AC current:AC1A,5A; |
| Overload Capacity | 1.2In, continuous working20 times for 1 second |
| Power Supply | Rated: AC/DC220, AC/DC110V or DC48V Permissible deviation: -20%-+20%Power consumption:≤15W |
| Power Consumption | ≤0.5VA (single phase) |
| Measuring Range | 0-1.2In |
| Digital output | Mechanical service life: ≥10000 Output mode: Passive contactsSwitching capacity: ≤4000W or ≤384VAOn-state current: ≥16A(AC250V/DC24V) in the continuous mode;≥30A for a short term (200ms) |
| Accuracy | Class 0.5 |
| RMS Voltage:±0.1%RMS Current:±0.1%P,Q,S:±0.2%Power factor:Class 0.5Voltage deviation:0.1%Frequency deviation:±0.001Hz | |
| Communication | RS485,Modbus-RTU protocol;Ethernet. |
| Three phase unbalance | Voltage unbalance:±0.15% Current unbalance:±1% |
| Power frequency withstand voltage | Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV |
| Temperature | Operation: -10℃~+55℃Storage: -30℃-+80℃ |
| Humidity | ≤95%RH,no condensation,without corrosive gas |
| Altitude | ≤ 2500m |
