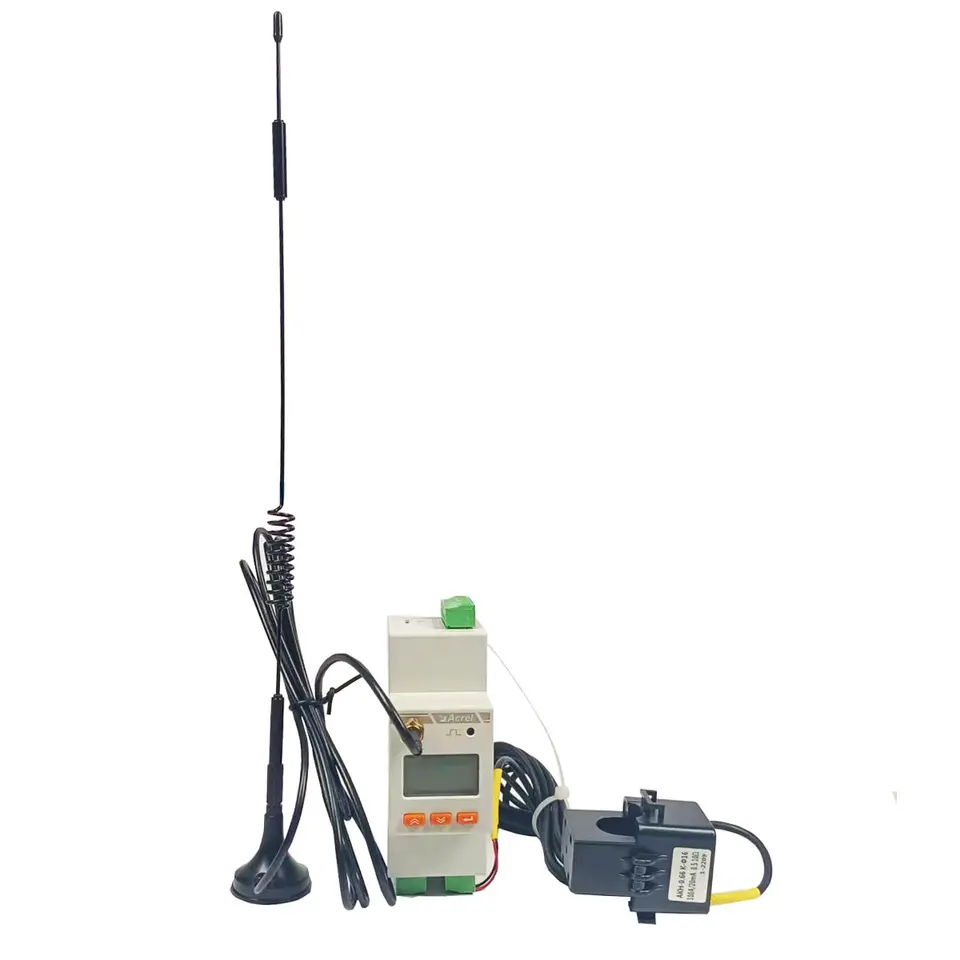

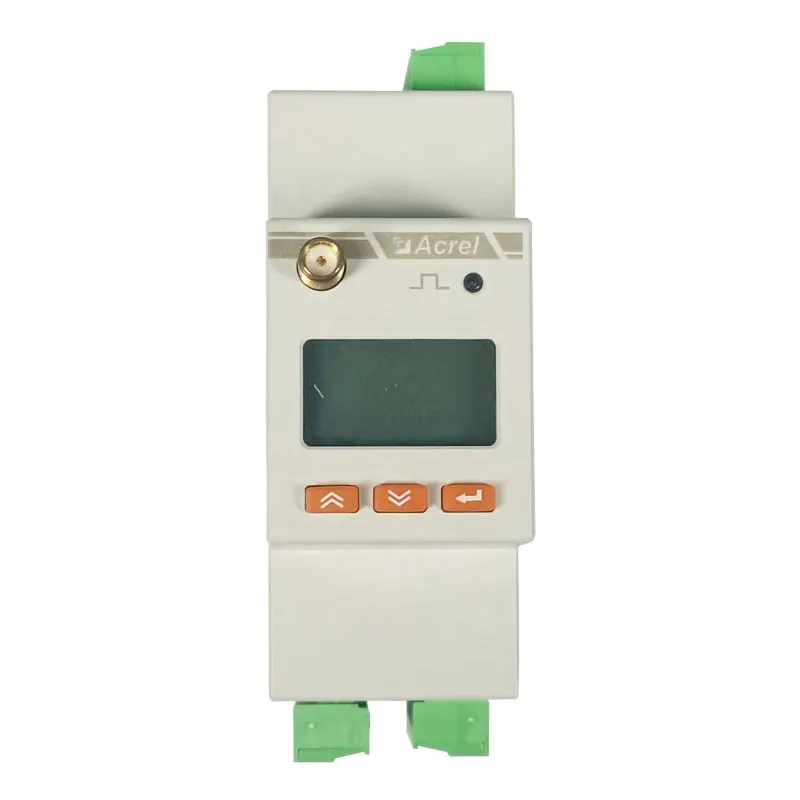

Acrel ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods.

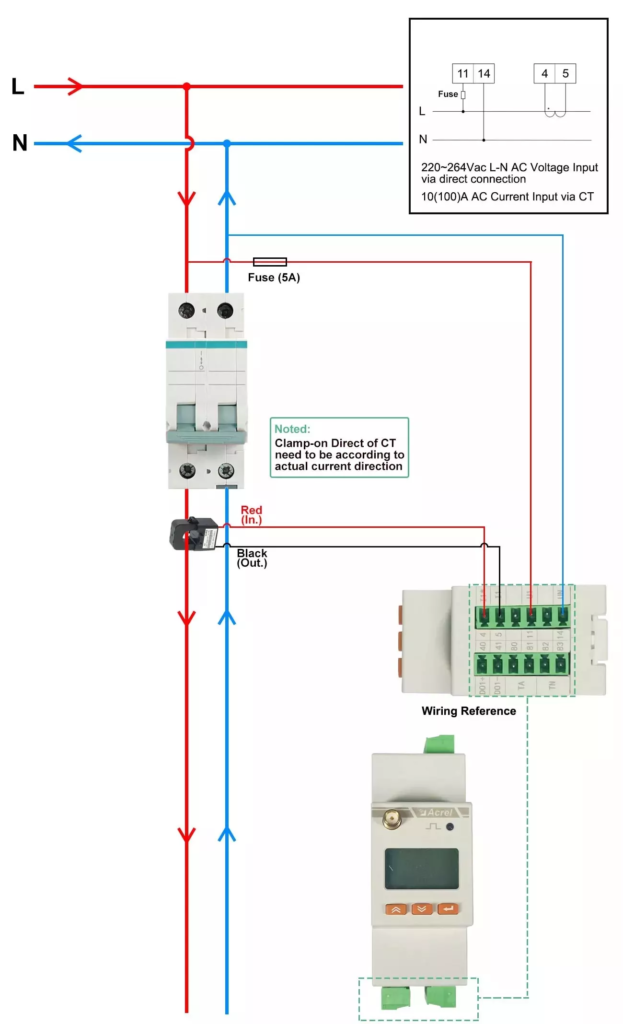

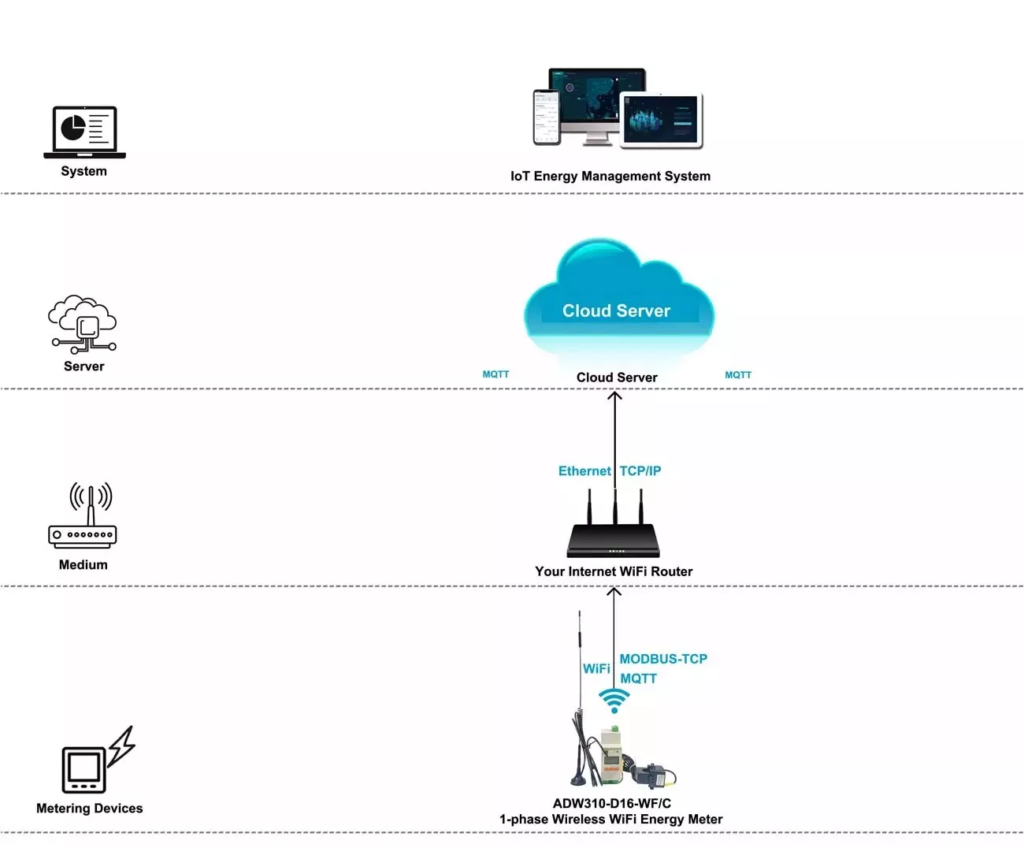

It can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas and different loads.
| Input voltage | 220Vac |
| Input current | AC 20(100)A |
| Accuracy(active) | Class 1 |

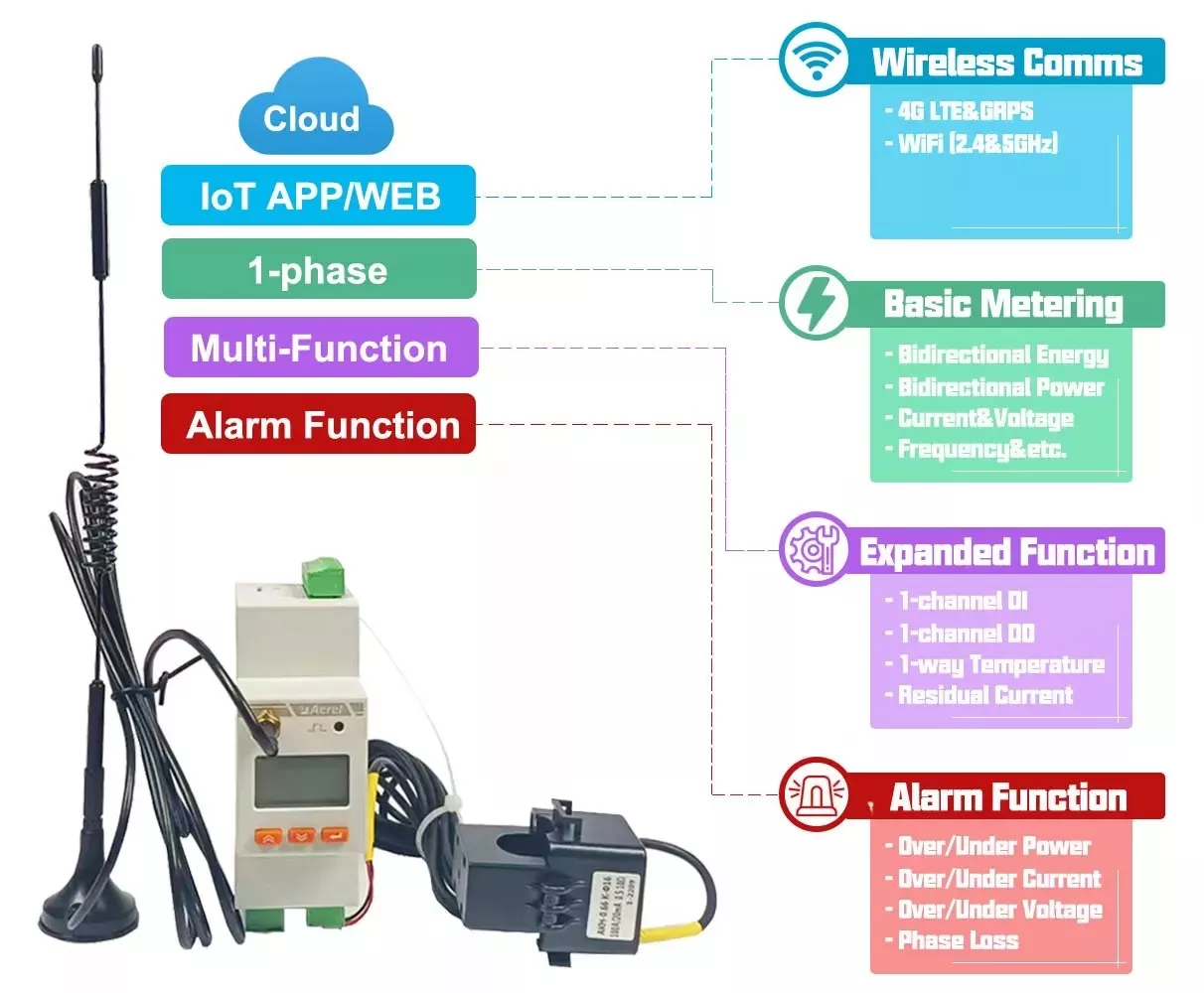

| Basic function | measure voltage,current,power factor, frequency,active power,reactive power, apparent power |
| active energy metering (forward, reverse) | |
| Total harmonic content, sub-harmonic content (2 to 31 times) | |
| Optional function | /4G: 4G communication |
| /WF: WIFI communication | |
| /C: RS485(Modbus-RTU) | |
| /K: 1DI, 1DO | |
| /T: Two-way temperature measurement | |
| /L : 1 channel residual current | |
| /LR: 470MHz wireless transmission | |
| Power supply | AC 85~265V |
| Dimension | 90*70*36mm |
Acrel is a high-tech enterprise focusing on research, production, sales and service. We mainly provide users with system solutions for energy efficiency management and electrical safety.
