Acrel BD series power transducer is a device that converts electrical parameters such as current, voltage, frequency, power, power factor, etc. in the power grid into linear DC analog signals or digital signals through isolation. Products comply with GB/T13850-1998, IEC-688 standards.

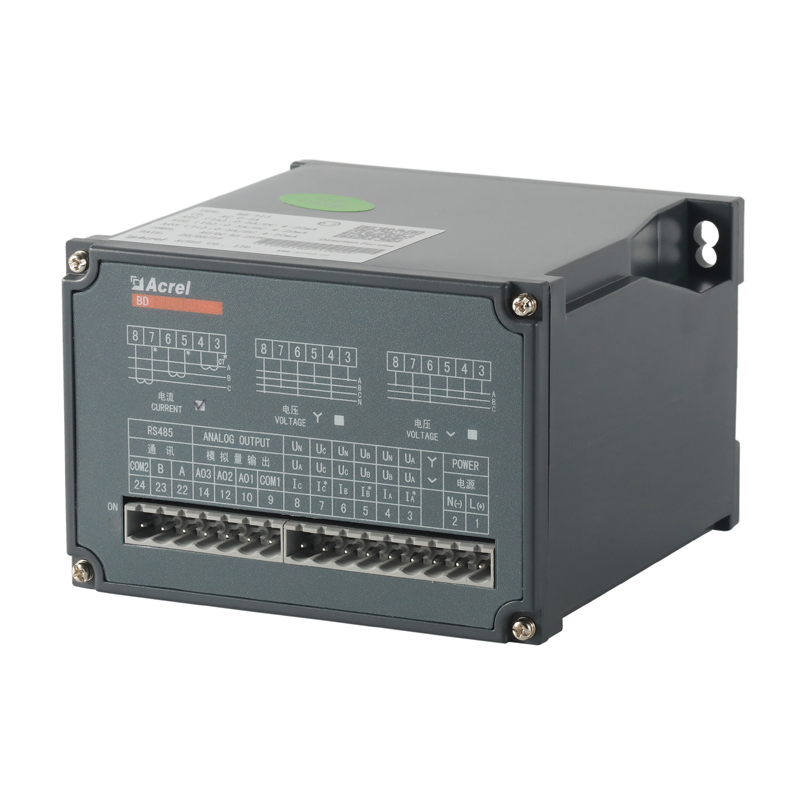

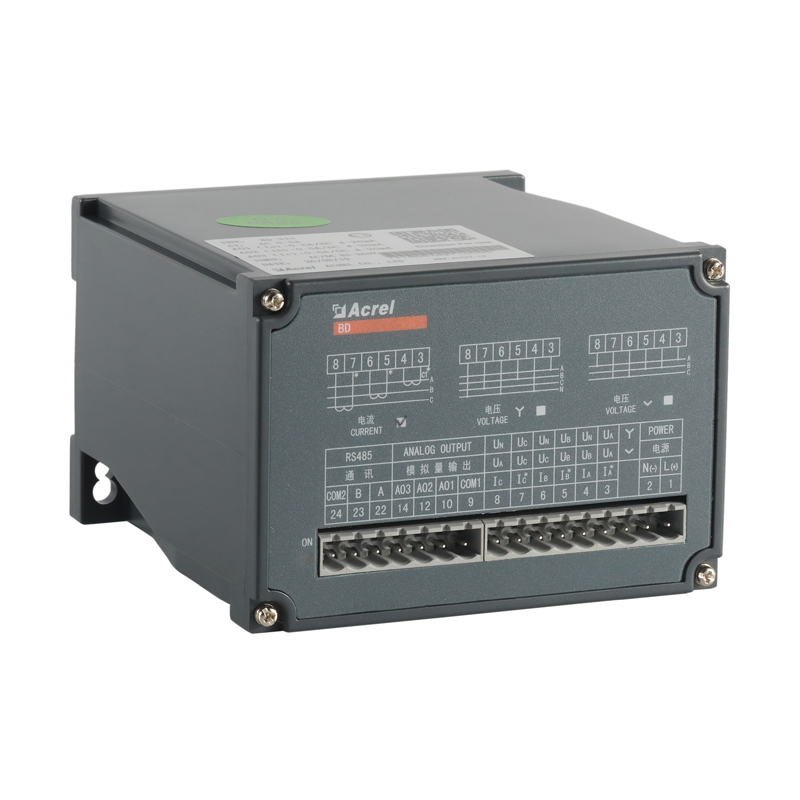

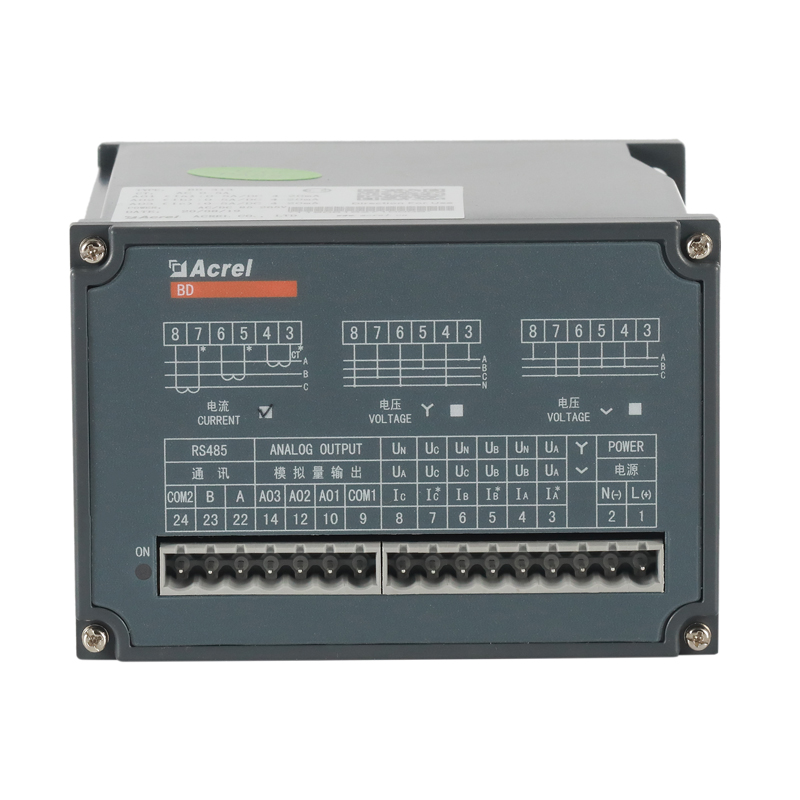

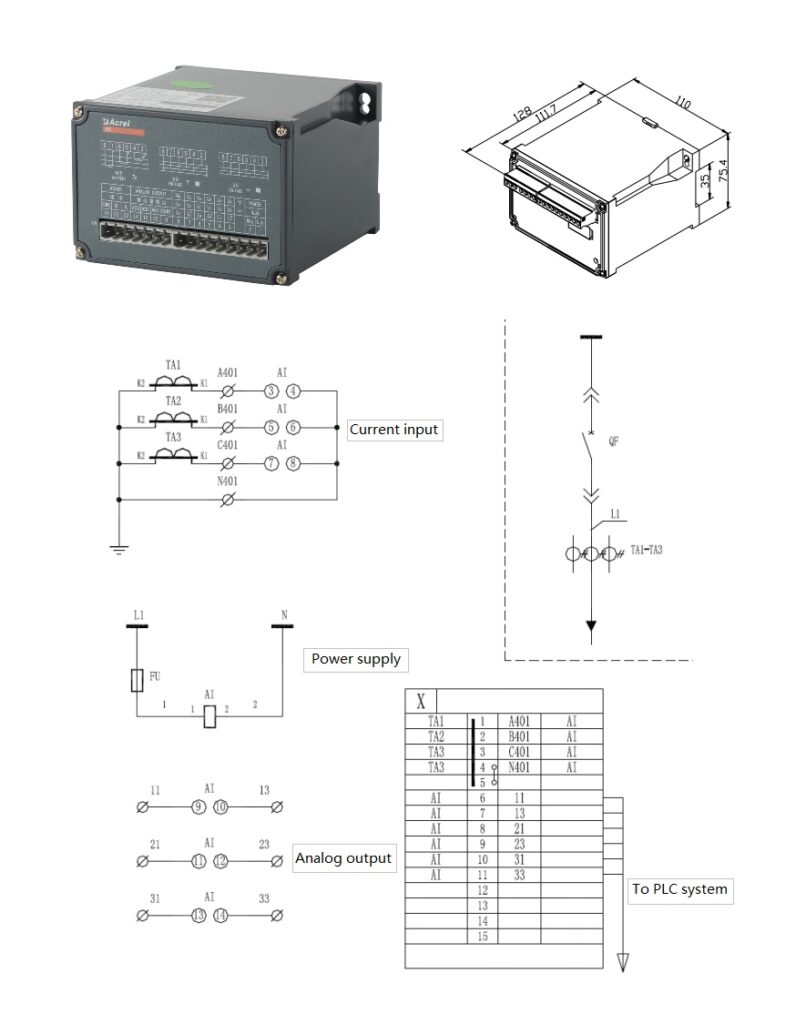

BD-3I3 Three Phase Current Transducer can measure three-phase current and voltage signals, isolate and transmit three-way analog signals. Also can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.
| Type | BD-3I3,BD-3V3,BD-4V3 | |
| Accuracy | 0.5 class,0.2 class | |
| Input | Signal | AC0~1A,0~5A,AC 0~120V,0~300V,0~500V |
| Overload | Current:continuous 1.2 times, instant current 10 times per second Voltage:continuous 1.2 imes, instant Voltage 10 times per second | |
| Frequency | 45Hz~65Hz | |
| Output | Signal | DC 4~20mA,0~20mA,0~5V,0~10V |
| Load | Current output<600Ω,Voltage output1000Ω | |
| Optional function | / | |
| Power Supply | AC 85~265V DC 100V~350V DC 24V/48V | |
| Temperature drift coefficient | 0.2class≤100ppm℃,0.5class≤200ppm℃ | |
| Response time | <400ms | |
| Insulation resistance | ≥100MΩ | |
| Power frequency withstand voltage | Auxiliary power supply/Input / Output 2kV/1min,50Hz | |
| Environment | Temperature | Work;-10℃~55℃ Store:-25℃~70℃ |
| Humidity | ≤93%RH,places without condensation and corrosive gas | |
| Altitude | ≤2500m | |

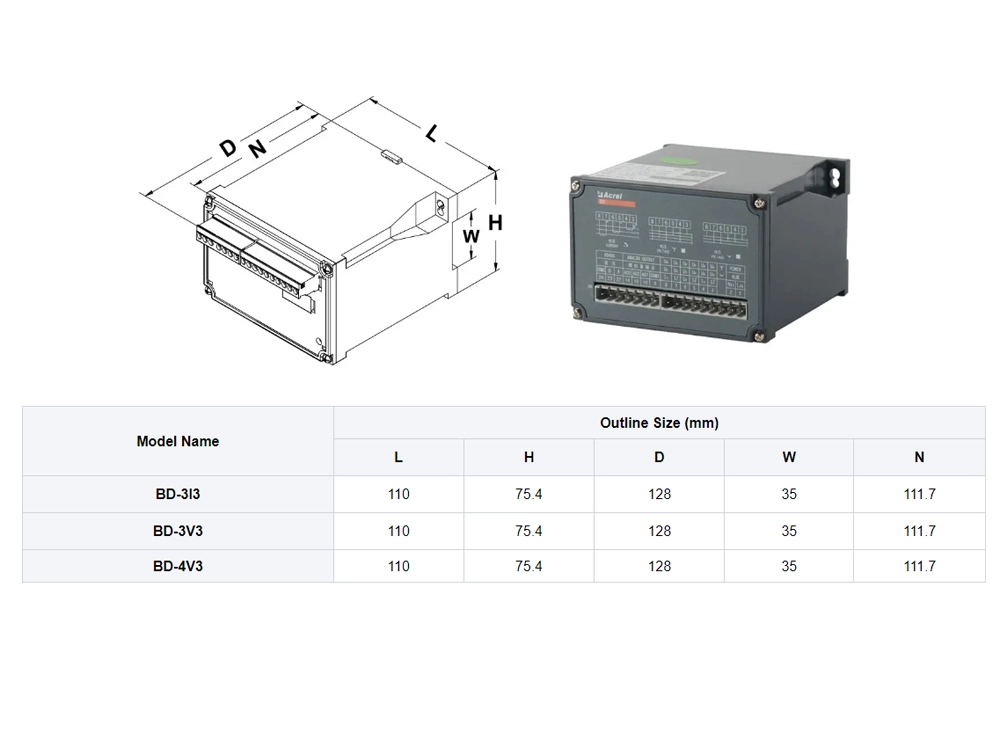

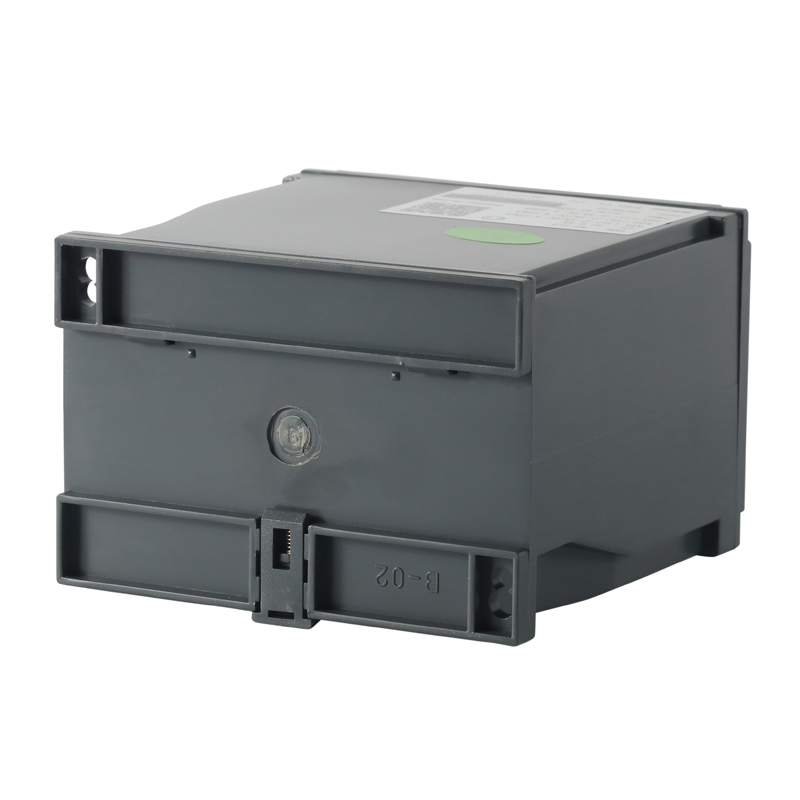

| Installation mode | TS35mm din rail or screw fixing | |
| Model Name | Measurement | Input | Output | Power Supply |
| BA-AI | 1-phaseAC Current | 0~1A AC/0~5A AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 1-phase 2-wire |
| BA-3I3 | 3-phaseAC Current | 0~1A AC/0~5A AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DC | 3-phase 3-wire |
| BA-AV | 1-phaseAC Voltage | 0~120/300/500V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 1-phase 2-wire |
| BA-3V3 | 3-phaseAC Voltage | 0~120/300/500V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DC | 3-phase 3-wire |
| BA-4V3 | 3-phaseAC Voltage | 0~120/300/500V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DC | 3-phase 4-wire |
| BD-DI | 1-phaseDC Current | 4~20mA DC/0~20mA DC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DC | 1-phase 2-wire |
| BD-DV | 1-phaseDC Voltage | 0~75mV DC/0~10V DC/0~300V DC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DC | 1-phase 2-wire |
| BD-3P | 3-phaseActive Power | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 3-wire |
| BD-4P | 3-phaseActive Power | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
| BD-3Q | 3-phaseReactive Power | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 3-wire |
| BD-4Q | 3-phaseReactive Power | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
| BD-3/P/Q/I | 3-phaseActive&ReactivePower | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 3-wire |
| BD-4/P/Q/I | 3-phaseActive&ReactivePower | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
| BD-PF | 3-phasePower-Factor | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
| BD-F | 3-phaseFrequency | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
| BD-3E | 3-phaseMulti-Parameters | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 3-wire |
| BD-4E | 3-phaseMulti-Parameters | 0~1A AC/0~5A AC and0~100/220/380V AC | 4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) | 3-phase 4-wire |
