● Aperture: 50mm
● Input: 0~(60-600A) current
● Output: DC 4-20mA or DC 0-5V, 0-10V
● Overload: 1.2 times of rated value
● Power supply: DC12V/DC24V
The Acrel intelligent BA series current sensor uses the principle of electromagnetic induction to measure the AC current in the power grid in real time and uses constant current and linear compensation technology to isolate and transform it into a standard DC signal output, or through the RS485 interface (Modbus-RTU protocol) to transmit the measurement data. DC24V or 12V safety voltage power supply, can be widely used in the field of industrial automation. BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.
| Technical parameter | Index | ||
| Accuracy class | Class 0.5 | ||
| Input | Nominal value | BA20(II)-AI | Current AC 0.5A, 50A, 200A, etc. AC 0～(0.5～200)A |
| BA50(II)-AI | Current AC 60A, 300A, 600A, etc. AC 0～(60～600)A | ||
| BA50L(II)-AI | Current AC 0.1A, 1A, etc. AC 0～(0.1～1)A | ||
| Frequency response | 25Hz～800Hz, especially suitable for industrial frequency occasions | ||
| Output | Nominal value | DC4～20mA, or 0～20mA, 0～5V, 0～10V etc. | |
| Communication | RS485 interface/Modbus-RTU | ||
| Power supply | DC 12V or 24V | ||

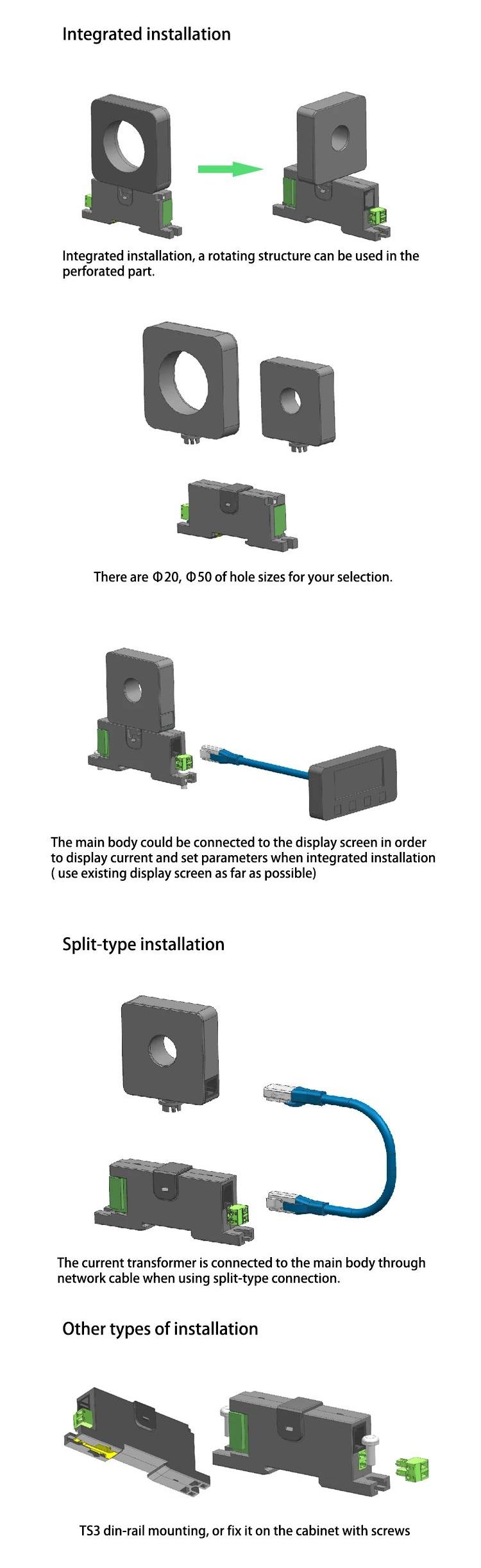

| Installation method | TS35 rail, or use screws to fix the cabinet | ||
