IEC/EN61869-1, IEC/EN61869-2, UL E520314
CE, UL

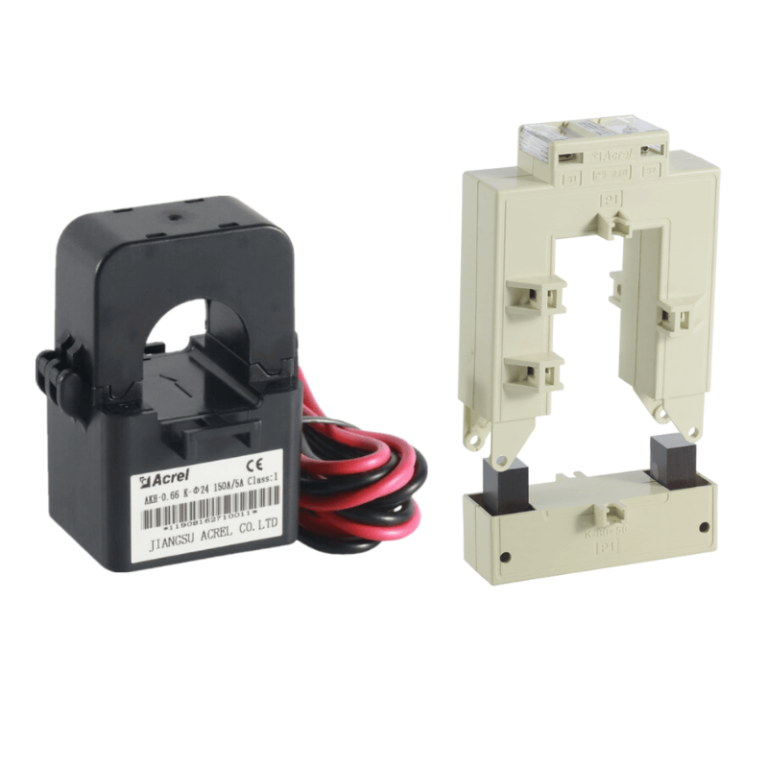

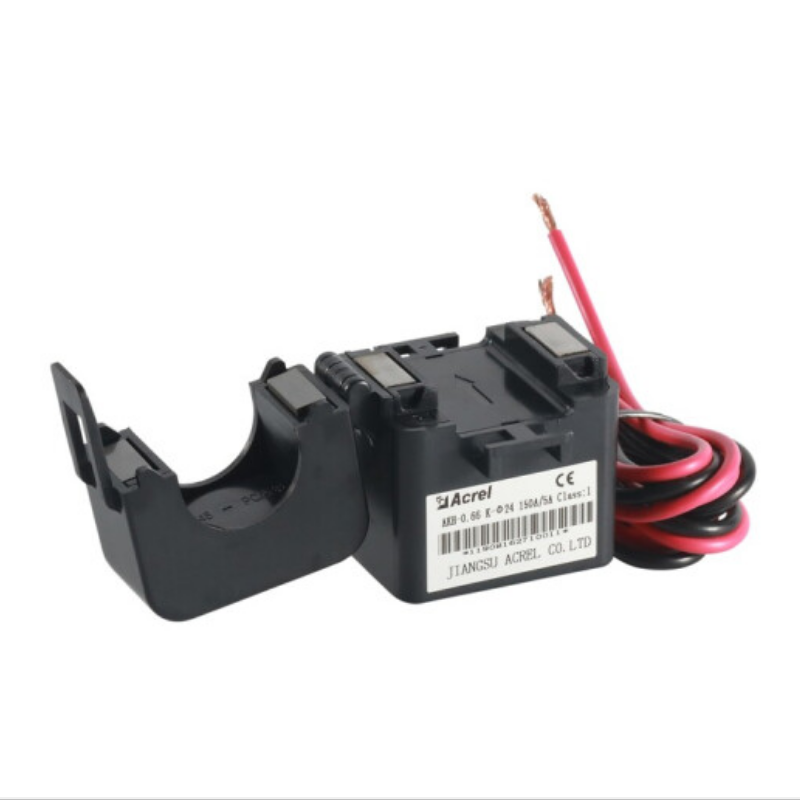

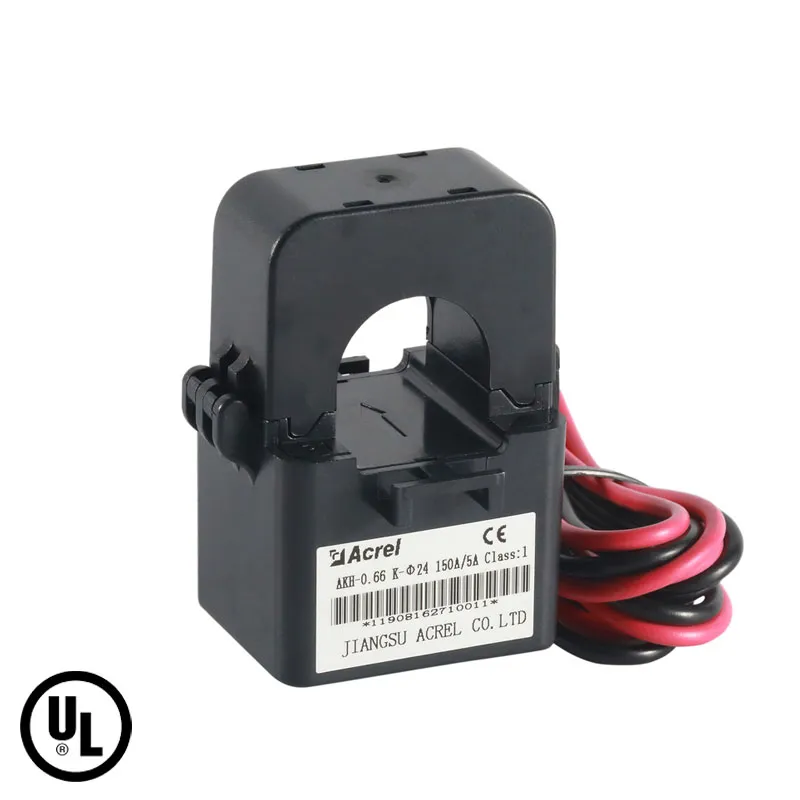

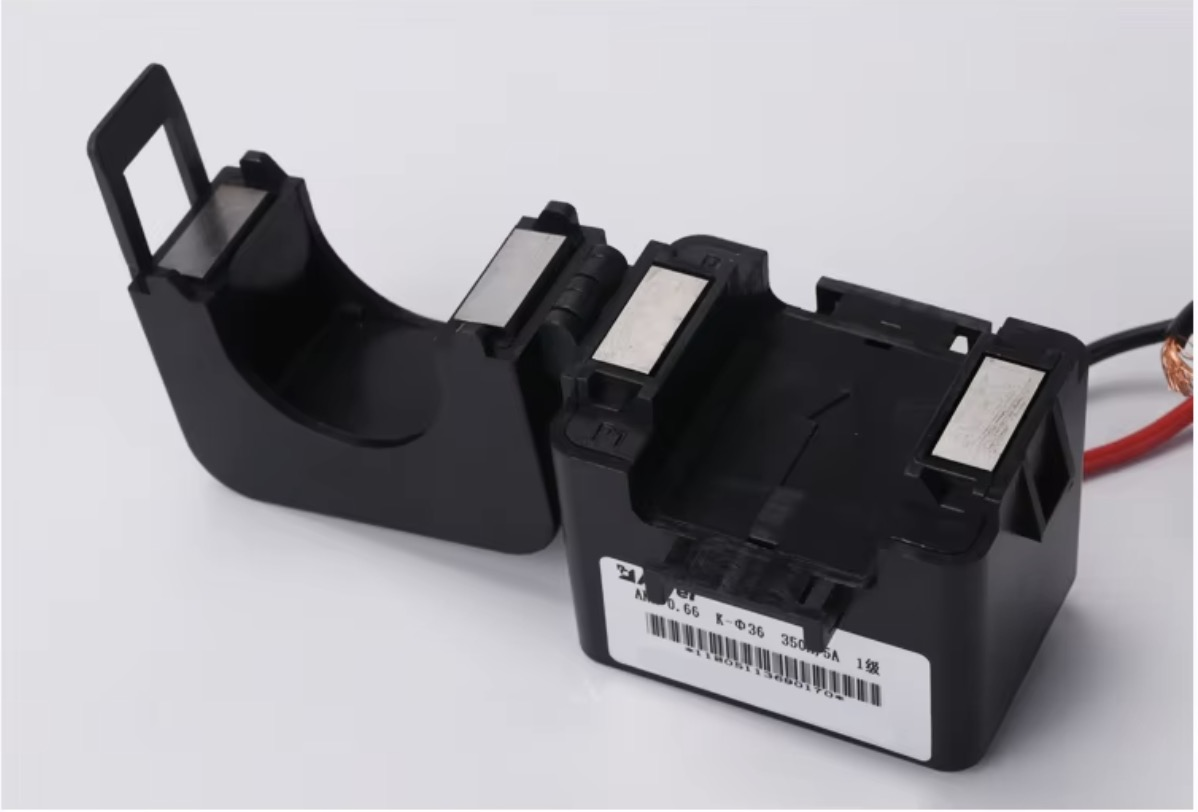

AKH-0.66K series split core current transformer is mainly used in distribution system renovation projects. It is convenient installation and no need to remove the main line once.

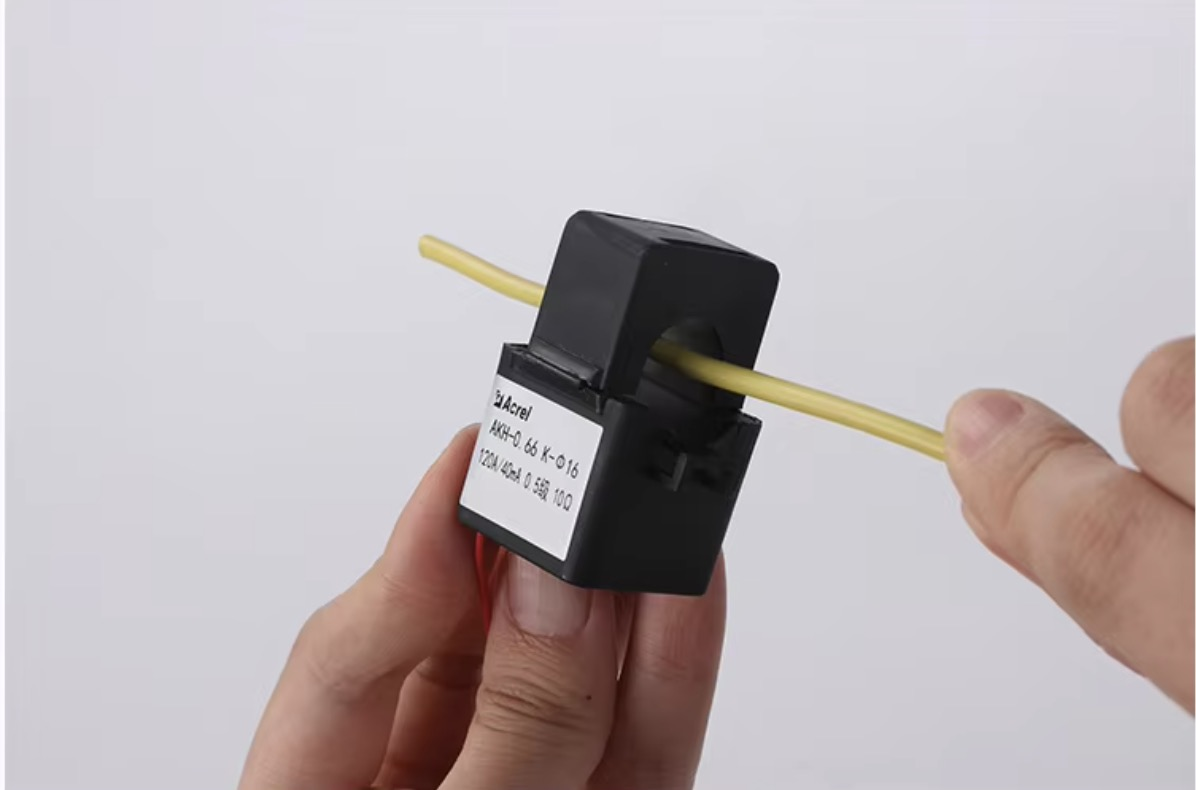

The clamp CT can be connected to electric operation and can't affect the normal use of electricity by customers. Split core current transformer saves manpower, resources, and money for customers in renovation projects.
| Model | Current Ratio(A) | Accuracy | Rated Load | Aperture |
| Name | Primary/Secondary | Class | (VA) | Hole Diameter(mm) |
| AKH-0.66/K-Φ10 | 5A/1.25mA | 0.5 | 10 | φ10 |
| (10~20)A/5mA | ||||
| 5A/1.67mA | ||||
| 80A/26.7mA | ||||
| (40~50)A/20mA | ||||
| (5-50)A/333mV | 1 | 10 | ||
| AKH-0.66/K-Φ16 | (20~50)A/10mA | 0.5 | 10 | φ16 |
| 40~100A/20mA | ||||
| 100A/40mA | ||||
| 80A/32mA | ||||
| 120A/40mA | ||||
| (40-100)A/333mV | ||||
| AKH-0.66/K-Φ24 | (60~200)A/20mA | 0.5 | 10 | φ24 |
| (100~250)A/40mA | ||||
| (60-200)A/333mV | ||||
| (150~200)A/5(1)A | 1 | 1 | ||
| (250~300)A/5(1)A | 1 | 1.5 | ||
| AKH-0.66/K-φ36 | (100~200)A/10mA | 0.5 | 10 | φ36 |
| (200~400)A/20mA | ||||
| (300~600)A/100mA | ||||
| 400A/40mA | ||||
| 600A/75mA | ||||
| (300~400)A/5(1)A | 1 | 1.5 | ||
| (500~600)A/5(1)A | 0.5 | 1.5 | ||
| AKH-0.66/K-φ50 | (600~700)A/5(1)A | 0.5 | 2.5 | φ50 |
| (800~900)A/5(1)A | 0.5 | 5 | ||
| 1000A/5(1)A | 0.5 | 10 |

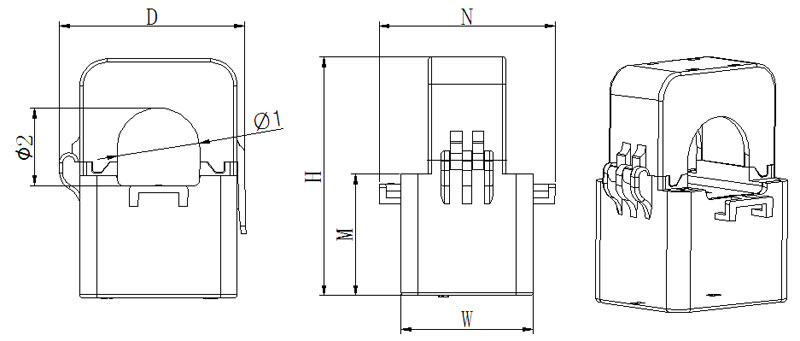

| Type | Outline size（mm） | Perforationsize（mm） | Tolerance（mm） | |||||
| W | H | D | M | N | Φ1 | Φ2 | ||
| K-Φ10 | 27 | 44 | 32 | 25 | 36 | 10 | 9 | ±1 |
| K-Φ16 | 31 | 50 | 36 | 27 | 42 | 16 | 17 | |
| K-Φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | |
| K-Φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
